Titanium vs Stainless Steel: Which Material is Better?
Dec 17, 2025
In the realm of engineering materials, titanium vs stainless steel frequently stand out as two high-performance metals utilized across a broad range of industries.
Their applications span aerospace, medical, marine, and consumer products, driven by their unique mechanical, chemical, and physical characteristics.
This article delivers a professional, data-driven comparison of these two materials, aiming to inform material selection decisions with authority and clarity.
Chemical Composition & Alloy Systems
Titanium Alloys
It is typically used in two forms:
Commercially pure titanium (Grades 1–4) – varying oxygen content controls strength and ductility.
Titanium alloys – mainly Ti-6Al-4V (Grade 5), the industry workhorse.
| Titanium Grade | Composition | Key Characteristics |
| Grade 1 | ~99.5% Ti, very low O | Softest, most ductile, excellent corrosion resistance |
| Grade 2 | ~99.2% Ti, low O | Stronger than Grade 1, widely used in industrial applications |
| Grade 5 (Ti‑6Al‑4V) | ~90% Ti, 6% Al, 4% V | High strength-to-weight ratio, aerospace & biomedical use |
| Grade 23 | Ti‑6Al‑4V ELI (Extra Low Interstitial) | Improved biocompatibility for implants |
Stainless Steel Families
Stainless steels are iron-based alloys with ≥10.5% chromium, forming a passive Cr₂O₃ film for corrosion resistance. They are grouped by microstructure:
| Family | Typical Grades | Key Alloying Elements | Primary Characteristics | Common Applications |
| Austenitic | 304, 316, 321 | Cr, Ni, (Mo in 316), (Ti in 321) | Excellent corrosion resistance, non-magnetic, good formability | Food processing, medical devices, chemical equipment |
| Ferritic | 409, 430, 446 | Cr | Magnetic, moderate corrosion resistance, good thermal conductivity | Automotive exhausts, appliances, architectural trim |
Martensitic |
410, 420, 440A/B/C | Cr, C | High hardness and strength, magnetic, less corrosion-resistant | Knives, turbine blades, tools |
| Duplex | 2205, 2507 | Cr, Ni, Mo, N | High strength, improved chloride stress corrosion cracking (SCC) resistance | Marine structures, oil & gas, bridges |
| Precipitation-Hardening | 17-4PH, 15-5PH, 13-8Mo | Cr, Ni, Cu, Al (or Mo, Nb) | Combines high strength and corrosion resistance, heat-treatable | Aerospace, defense, shafts, valves, nuclear components |
Mechanical Properties of Titanium vs Stainless Steel
Selecting between titanium and stainless steel requires understanding their distinct mechanical profiles. The table below outlines the most relevant properties for commonly used grades:
Mechanical Properties Comparison Table
| Property | Titanium Grade 2 (Commercially Pure) | Ti-6Al-4V (Grade 5) | 304 Stainless Steel | 316 Stainless Steel |
| Density (g/cm³) | 4.51 | 4.43 | 8.00 | 8.00 |
| Tensile Strength (MPa) | ~345 | ~900 | ~505 | ~515 |
| Yield Strength (MPa) | ~275 | ~830 | ~215 | ~205 |
| Elongation (%) | ~20 | 10–14 | ~40 | ~40 |
| Hardness (HB) | ~160 | ~330 | 150–170 | 150–180 |
| Elastic Modulus (GPa) | ~105 | ~114 | ~193 | ~193 |
| Fatigue Strength (MPa) | ~240 | ~510 | ~240 | ~230 |
Corrosion Resistance & Surface Behavior
Corrosion performance often dictates material choice in demanding environments.
Both titanium and stainless steel rely on passive oxide films-yet their behavior diverges sharply under chlorides, acids, and elevated temperatures.
Passive Film Formation
Titanium (TiO₂)
Instantly forms a 2–10 nm thick, self‑healing oxide layer
Re‑passivates rapidly if scratched-even in seawater
Stainless Steel (Cr₂O₃)
Develops a 0.5–3 nm chromium oxide film
Effective in oxidizing environments but vulnerable where oxygen is depleted
Performance in Aggressive Environments
| Environment | Ti‑6Al‑4V | 316 Stainless Steel |
| Chloride‑bearing solutions | No pitting at Cl⁻ up to 50 g/L at 25 °C | Pitting threshold ~ 6 g/L Cl⁻ at 25 °C |
| Seawater Immersion | < 0.01 mm/year corrosion rate | 0.05–0.10 mm/year; localized pitting |
| Acidic media (HCl 1 M) | Passive up to ~ 200 °C | Severe uniform attack; ~ 0.5 mm/year |
| Oxidizing acids (HNO₃ 10%) | Excellent; negligible attack | Good; ~ 0.02 mm/year |
| High‑temperature oxidation | Stable to ~ 600 °C | Stable to ~ 800 °C (intermittent) |
Localized Corrosion Susceptibility
Pitting & Crevice Corrosion
Titanium: Pitting potential > +2.0 V vs. SCE; essentially immune under normal service.
316 SS: Pitting potential ~ +0.4 V vs. SCE; crevice corrosion common in stagnant chlorides.
Stress‑Corrosion Cracking (SCC)
Titanium: Virtually SCC‑free in all aqueous media.
Austenitic SS: Prone to SCC in warm chloride environments (e.g., above 60 °C).
Surface Treatments & Coatings
Titanium
Anodizing: Enhances oxide thickness (up to 50 nm), allows color marking.
Micro‑Arc Oxidation (MAO): Creates a 10–30 µm ceramic‑like layer; boosts wear and corrosion resistance.
Plasma Nitriding: Improves surface hardness and fatigue life.
Stainless Steel
Acid Passivation: Nitric or citric acid removes free iron, thickens Cr₂O₃ film.
Electropolishing: Smooths microscale peaks and valleys, reducing crevice sites.
PVD Coatings (e.g., TiN, CrN): Adds a thin hard barrier for wear and chemical attack.
Thermal Properties & Heat Treatment of Titanium vs Stainless Steel
Thermal behavior influences material choice for components exposed to temperature swings or high‑heat service.
Titanium vs stainless steel differ significantly in heat conduction, expansion, and treatability.
Thermal Conductivity & Expansion
| Property | Ti‑6Al‑4V | 304 Stainless Steel |
| Thermal Conductivity (W/m·K) | 6.7 | 16.2 |
| Specific Heat Capacity (J/kg·K) | 560 | 500 |
| Coefficient of Thermal Expansion (20–100 °C, 10⁻⁶/K) | 8.6 | 17.3 |
Heat‑treatable vs. non‑hardenable grades
Martensitic stainless steels are heat-treatable and can be hardened and tempered to achieve desired mechanical properties.
Austenitic stainless steels are non-hardenable by heat treatment, but their strength can be increased through cold working.
Duplex steels rely on controlled heat input during welding, with no further hardening.
Titanium alloys, such as Ti-6Al-4V, can be heat-treated to optimize their mechanical properties, including solution annealing, aging, and stress relieving.
High‑Temperature Stability & Oxidation
Titanium resists oxidation up to ~ 600 °C in air. Beyond this, embrittlement from oxygen diffusion can occur.
Stainless Steel (304/316) remains stable to ~ 800 °C intermittently, with continuous use up to ~ 650 °C.
Scale Formation: SS forms protective chromia scales; titanium's oxide adheres strongly, but thick scales can spall under cycling.
Fabrication & Joining of Titanium vs Stainless Steel
Formability and machinability
Austenitic stainless steels are highly formable and can be easily shaped using processes like deep drawing, stamping, and bending.
Ferritic and martensitic stainless steels have lower formability. Titanium is less formable at room temperature due to its high strength, but hot-forming techniques can be used to shape it.
Machining titanium is more difficult than stainless steel due to its low thermal conductivity, high strength, and chemical reactivity, which can lead to rapid tool wear.
Welding and brazing challenges
Welding stainless steel is a well-established process, with various techniques available. However, care must be taken to prevent issues such as corrosion at the weld site.
Welding titanium is more challenging as it requires a clean environment and inert gas shielding to prevent contamination from oxygen, nitrogen, and hydrogen, which can degrade the mechanical properties of the weld.
Brazing can also be used for both materials, but different filler metals and process parameters are required.
Additive manufacturing (3D printing) readiness
Both titanium and stainless steel are suitable for additive manufacturing.
Titanium's high strength-to-weight ratio makes it attractive for aerospace and medical applications produced via 3D printing.
Stainless steel is also widely used in 3D printing, especially for producing complex geometries in consumer goods and medical instruments.
Surface finishing (polishing, passivation, anodizing)
Stainless steel can be polished to a high shine, and passivated to enhance its corrosion resistance.
Titanium can be polished and anodized to create different surface finishes and colors, as well as to improve its corrosion and wear resistance.
Biocompatibility & Medical Use
In medical applications, tissue compatibility, corrosion resistance in body fluids, and long‑term stability determine material suitability.
Titanium's Implant History & Osseointegration
Early Adoption (1950s):
Research by Per-Ingvar Brånemark revealed that bone bonds directly to titanium (osseointegration).
First successful dental implants used CP titanium, demonstrating > 90% success rates at 10 years.
Osseointegration Mechanism:
Native TiO₂ surface layer supports bone cell attachment and proliferation.
Roughened or anodized surfaces increase bone–implant contact area by 20–30%, improving stability.
Current Uses:
Orthopedic implants: Hip and knee joints (Ti‑6Al‑4V ELI)
Dental fixtures: Screws, abutments
Spinal devices: Cages and rods
Stainless Steel in Surgical Tools & Temporary Implants
Surgical Instruments:
304L and 316L stainless steels dominate scalpels, forceps, and clamps due to ease of sterilization and high strength.
Autoclave cycles (> 1,000) induce no significant corrosion or fatigue failures.
Temporary Fixation Devices:
Pins, screws, and plates crafted from 316L offer sufficient strength for fracture repair.
Removal within 6–12 months minimizes concerns over nickel release or sensitization.
Sterilization & Long‑Term Tissue Response
| Sterilization Method | Titanium | Stainless Steel |
| Autoclave (steam) | Excellent; no surface change | Excellent; requires passivation check |
| Chemical (e.g., glutaraldehyde) | No adverse effect | May accelerate pitting if chloride‑contaminated |
| Gamma irradiation | No impact on mechanical properties | Slight surface oxidation possible |
Titanium exhibits minimal ion release (< 0.1 µg/cm²/day) and elicits a mild foreign‑body response, forming a thin, stable fibrous capsule.
316L SS releases iron, chromium, nickel ions at higher rates (0.5–2 µg/cm²/day), potentially provoking local inflammation in rare cases.
Applications of Titanium vs Stainless Steel
Stainless steel vs titanium are both widely used engineering materials known for their corrosion resistance and strength,
but their application fields differ significantly due to differences in weight, cost, mechanical properties, and biocompatibility.
Titanium Applications
Aerospace and Aviation
Airframes and landing gear components
Jet engine parts (compressor blades, casings, discs)
Spacecraft structures and fasteners
Rationale: High strength-to-weight ratio, excellent fatigue resistance, and corrosion resistance in extreme environments.
Medical and Dental
Orthopedic implants (hip and knee replacements)
Dental implants and abutments
Surgical instruments
Rationale: Exceptional biocompatibility, non-toxicity, and resistance to body fluids.
Marine and Offshore
Submarine hulls
Heat exchangers and condenser tubing in seawater
Offshore oil and gas platforms
Rationale: Superior corrosion resistance in chloride-rich and saltwater environments.
Chemical Processing Industry
Reactors, vessels, and piping for handling corrosive acids (e.g., hydrochloric, sulfuric acid)
Rationale: Inert to most chemicals and oxidizing agents at high temperatures.
Sports and Consumer Goods

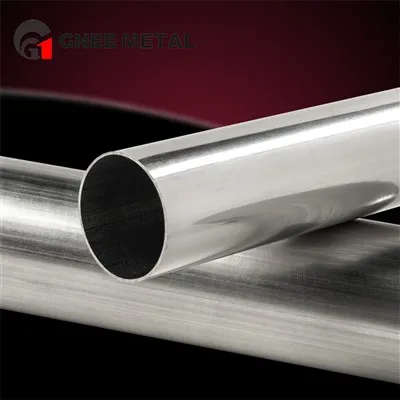

High-performance bicycles, golf clubs, and watches
Rationale: Lightweight, durable, and premium aesthetics.
Stainless Steel Applications
Architecture and Construction
Cladding, handrails, structural beams
Roofing, elevator doors, and facade panels
Rationale: Aesthetic appeal, corrosion resistance, and structural strength.
Food and Beverage Industry
Food processing equipment, tanks, and sinks
Brewery and dairy equipment
Rationale: Hygienic surface, resistance to food acids, easy to sterilize.
Medical Devices and Tools
Surgical instruments (scalpels, forceps)
Hospital equipment and trays
Rationale: High hardness, corrosion resistance, and ease of sterilization.
Automotive Industry
Exhaust systems, trim, and fasteners
Fuel tanks and frames
Rationale: Corrosion resistance, formability, and moderate cost.
Industrial Equipment and Chemical Processing
Pressure vessels, heat exchangers, and tanks
Pumps, valves, and piping systems
Rationale: High-temperature resistance and resistance to a broad range of chemicals.
Standards, Specifications & Certification
Titanium Standards
ASTM F136: Ti‑6Al‑4V ELI for implants
AMS 4911: Aerospace titanium
ISO 5832-3: Implants-unalloyed titanium
Stainless Steel Standards
ASTM A240: Plate, sheet
ASTM A276: Bars and rods
EN 10088: Stainless steel grades
ISO 7153-1: Surgical instruments
Comparison Table: Titanium vs Stainless Steel
| Property / Characteristic | Titanium (e.g., Ti-6Al-4V) | Stainless Steel (e.g., 304, 316, 17-4PH) |
| Density | ~4.5 g/cm³ | ~7.9 – 8.1 g/cm³ |
| Specific Strength (Strength-to-Weight) | Very high | Moderate |
| Tensile Strength | ~900–1,100 MPa (Ti-6Al-4V) | ~500–1,000 MPa (depending on grade) |
| Yield Strength | ~830 MPa (Ti-6Al-4V) | ~200–950 MPa (e.g., 304 to 17-4PH) |
| Elastic Modulus | ~110 GPa | ~190–210 GPa |
| Corrosion Resistance | Excellent (especially in chlorides and seawater) | Excellent (varies by grade; 316 > 304) |
| Oxide Layer | TiO₂ (very stable and self-healing) | Cr₂O₃ (protective but susceptible to pitting in chlorides) |
| Hardness (HV) | ~330 HV (Ti-6Al-4V) | ~150–400 HV (grade dependent) |
| Thermal Conductivity | ~7 W/m·K | ~15–25 W/m·K |
Melting Point |
~1,660°C | ~1,400–1,530°C |
| Weldability | Challenging; requires inert atmosphere | Generally good; care needed to avoid sensitization |
| Machinability | Difficult; causes tool wear | Better; especially with free-machining grades |
| Biocompatibility | Excellent; ideal for implants | Good; used in surgical tools and temporary implants |
| Magnetic Properties | Non-magnetic | Austenitic: non-magnetic; Martensitic: magnetic |
| Cost (Raw Material) | High (~5–10× stainless steel) | Moderate |
| Recyclability | High | High |
Conclusion
Titanium and stainless steel each have distinct advantages. Titanium is ideal where lightweight strength, fatigue resistance, or biocompatibility are mission-critical.
Stainless steel, by contrast, offers versatile mechanical properties, easy fabrication, and cost efficiency.
Material selection should be application-specific, considering not just performance, but also long-term cost, manufacturability, and regulatory standards.
A total-cost-of-ownership approach often reveals titanium's true value, particularly in demanding environments.
FAQs
Is titanium stronger than stainless steel?
Titanium has a higher specific strength (strength-to-weight ratio) than stainless steel, meaning it provides more strength per unit mass.
However, some hardened stainless steel grades (e.g., 17-4PH) can exceed titanium in absolute tensile strength.
Is stainless steel magnetic while titanium is not?
Yes. Austenitic stainless steels (e.g., 304, 316) are non-magnetic, but martensitic and ferritic grades are magnetic.
Titanium, in contrast, is non-magnetic, making it ideal for applications like MRI-compatible medical devices.
Can both titanium and stainless steel be welded?
Yes, but with different requirements. Stainless steel is easier to weld using standard methods (e.g., TIG, MIG).
Titanium welding requires a fully inert atmosphere (argon shielding) to avoid contamination and embrittlement.
Which material is better for high-temperature applications?
Stainless steel, particularly heat-resistant grades like 310 or 446, performs well at sustained high temperatures.
Titanium resists oxidation up to ~600°C, but its mechanical properties degrade beyond that.
Can titanium and stainless steel be used together in assemblies?
Caution is advised. Galvanic corrosion can occur when titanium and stainless steel are in contact in the presence of an electrolyte (e.g., water), especially if stainless steel is the anodic material.
We deeply understand that selecting the most suitable material for specific applications is crucial to the success of a project. If you require professional material selection advice and customized solutions tailored to your specific needs, please feel free to contact our technical team. We are here to provide you with comprehensive one-stop support.
Our factory
GNEE not only possesses a deep understanding of the material characteristics and market dynamics of titanium and stainless steel but also leverages a robust global supply chain network to reliably provide you with high-quality metal products. Our offerings include titanium and titanium alloys (such as GR1, GR2, GR12, GR23), as well as various grades of stainless steel (e.g., 304, 316, duplex steel), available in multiple specifications and forms. Whether you prioritize the cutting-edge performance of titanium or the cost-effective reliability of stainless steel, we are committed to meeting your procurement needs with competitive pricing, assured quality, and efficient logistics support.
Packaging and shipping
We strictly adhere to international packaging standards and employ professional packaging solutions that are waterproof, moisture-proof, and impact-resistant to ensure the products remain intact during long-distance transportation. All products must undergo our rigorous quality inspection process before shipment to ensure their specifications and performance fully meet requirements. The standard delivery cycle for orders is 7 to 15 working days (subject to order complexity and logistics conditions). We are committed to ensuring that each batch of products arrives at your specified destination on time and securely through refined process management and digital logistics tracking.
