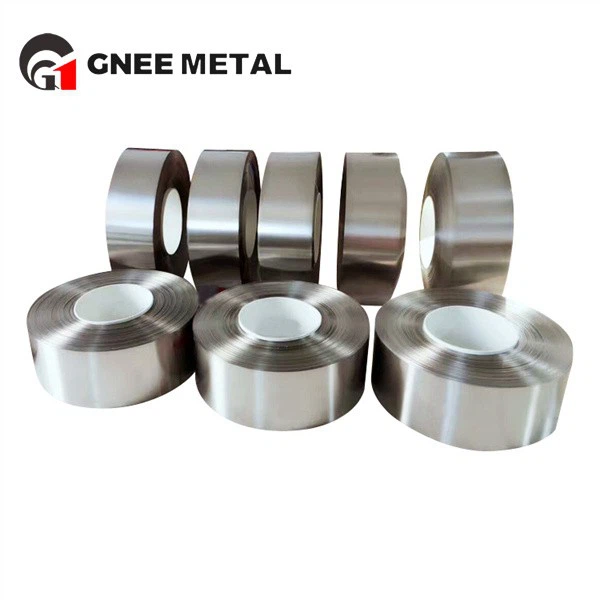

Grade 2 Titanium Coiled Foil Strip
Titanium is a new metal. Due to its excellent properties, it is widely used in aviation, aerospace, chemical industry, petroleum, metallurgy, light industry, electricity, seawater desalination, ships and daily life appliances. It is known as the modern metal.
Description
Commercially Pure Titanium Grade 2 is slightly stronger than Grade 1 but equally corrosion resistant against most applications. This unalloyed titanium has the best strength to weight ratio of any corrosion resistant material. This grade is one of the most common Titanium Grades and is used for Heat exchangers, condenser tubing and bleaching plants in paper industry, offshore oil installation water pipe lines. Can be used for parts requiring strength up to 400 ° F and oxidation resistance to 600 ° F.
Titanium Grades Description:
Titanium Grade 1-4 is pure Titanium, the other grades are alloys. Pure Titanium is used due to its high corrosion resistance, the alloys because of the extremely high strength to weight ratio.
Grade 1. Pure Titanium, relatively low strength and high ductility.
Grade 2. The pure titanium most used. The best combination of strength, ductility and weldability.
Grade 3. High strength Titanium, used for Matrix-plates in shell and tube heat exchangers.
Grade 5. The most manufactured titanium alloy. Exceedingly high strength. High heat resistance.
Grade 7. Superior corrosion resistance in reducing and oxidizing environments.
Grade 9. Very high strength and corrosion resistance..
Grade 12. Better heat resistance than pure Titanium. Applications as for Grade 7 and Grade 11.
Grade 23. Titanium-6Aluminum-4Vanadium ELI (Extra Low Interstitial) Alloy for surgical implant Applications.
First-class titanium production technology
Chemical Composition
| Element | Titanium | Nitrogen | Carbon | Hydrogen | Iron | Oxygen | Residuals (each) | Residuals (total) |
| % | Balance | 0.03 max | 0.08 max | 0.015 max | 0.30 max | 0.25 max | 0.1 max | 0.4 max |
Melting point of Titanium ASTM B265 Grade 2 Strip
| ASTM B265 Titanium Alloy Gr 2 Plate melting range |
| °F: 3020-3040 °C: 1660-1671 |
Ti Grade 2 UNS R50400 Chequered Sheet Mechanical Analysis
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|---|
| Titanium Gr. 2 Plate | 4.5 g/cm3 | 1665 °C (3030 °F) | Psi – 49900 , MPa – 344 | Psi – 39900 , MPa – 275 | 20 % |
About Us
We specialize in the research, development, and production of specialty titanium alloys and custom profiles. Our factory houses a dedicated titanium alloy R&D center and collaborates with multiple materials research institutes, possessing the capabilities to melt and form special materials such as titanium-molybdenum, titanium-palladium, and titanium-nickel shape memory alloys. Our production lines can customize extra-wide titanium plates (width > 2m), ultra-large diameter-to-thickness ratio thin-walled tubes, and titanium profiles with complex cross-sections. We are your technical partner in titanium materials for solving challenges in extreme corrosion environments, ultra-high or ultra-low temperatures, and special functional requirements.
Trustworthy Team
Hot Tags: grade 2 titanium coiled foil strip, China grade 2 titanium coiled foil strip manufacturers, suppliers, factory, titanium, Titanium Alloy Strip, Gr1 Pure Titanium Foil, Gr9 Titanium Strip, Gr2 titanium alloy foil, Pure Gr7 Titanium Foil, Gr23 Titanium Strip Coil
