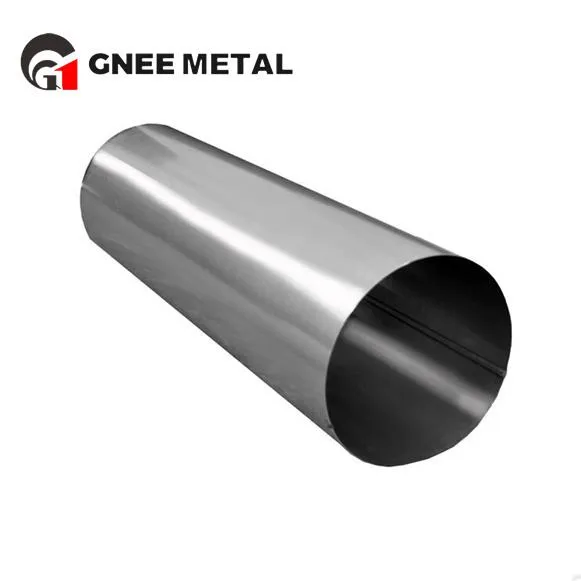

5 Inch Gr5 Titanium Pipe
Size Specifications
-Diameter: 5 inches (approximately 127 mm)
-Wall Thickness: Wall thicknesses can vary depending on the needs of the specific application. Common wall thicknesses range from a few millimeters to over ten millimeters.
-Length: Lengths can often be customized to meet specific customer requirements.
Description
Gr5 Titanium is a commonly used titanium alloy, also known as Ti-6Al-4V, containing 6% aluminum and 4% vanadium. This alloy has excellent strength, toughness and corrosion resistance and is used in a wide range of industries. gr5 titanium alloy has very high strength and maintains good mechanical properties especially at high temperatures.
High level of Gr5 titanium tube production technology
Titanium Grade 5 Mechanical Properties
| Property | Minimum | Typical Value |
| Tensile Strength MPa (ksi) | 897 (130) | 1000 (145) |
| 0.2% Proof Stress MPa (ksi) | 828 (120) | 910 (132) |
| Elongation Over 2 Inches % | 10 | 18 |
| Reduction in Area % | 20 | |
| Elastic Modulus GPa (Msi) | 114 (17) | |
| Hardness Rockwell C | 36 | |
| Specified Bend Radius <0.070 in x Thickness | 4.5 | |
| Specified Bend Radius >0.070 in x Thickness | 5 | |
| Welded Bend Radius x Thickness | 6 | |
| Charpy, V-Notch Impact J (ft.lbf) | 24 (18) |
Application Areas
1. Aerospace: Gr5 titanium alloy is widely used in aircraft engine components, fuselage structures, landing gears and other key components due to its light weight and high strength.
2. Chemical industry: Gr5 titanium tubes are used in the manufacture of pipes, heat exchangers, condensers and other components in chemical equipment due to its excellent corrosion resistance.
3. Medical industry: Due to its good biocompatibility and corrosion resistance, Gr5 titanium tubing is commonly used in the manufacture of medical implants (e.g. orthopedic implants) and medical devices.
4. Energy industry: In the nuclear and other energy industries, Gr5 titanium tubing is also used to manufacture corrosion-resistant piping and vessels.
Packaging of Gr5 Large Diameter Titanium Tubing
Highly reliable team supplying Gr5 Titanium Tubing
GNEE has 16 years of experience in titanium products and exports. The company is headquartered in Henan Province, China. The company is adjacent to the Beijing-Hong Kong-Macao Expressway and has more than 200 employees who are dedicated to the company. The company has a registered capital of 10 million RMB and covers an area of more than 350,000 square metres. The company has passed SGS certification.
We provide high quality products, good service and competitive price. We have been committed to producing titanium tubes, titanium sheets, titanium foils, titanium wires, titanium rods and so on.
Our products are exported to more than 150 countries and have entered key industries such as petroleum, chemical, medical, automotive, large power station, aerospace and so on.
