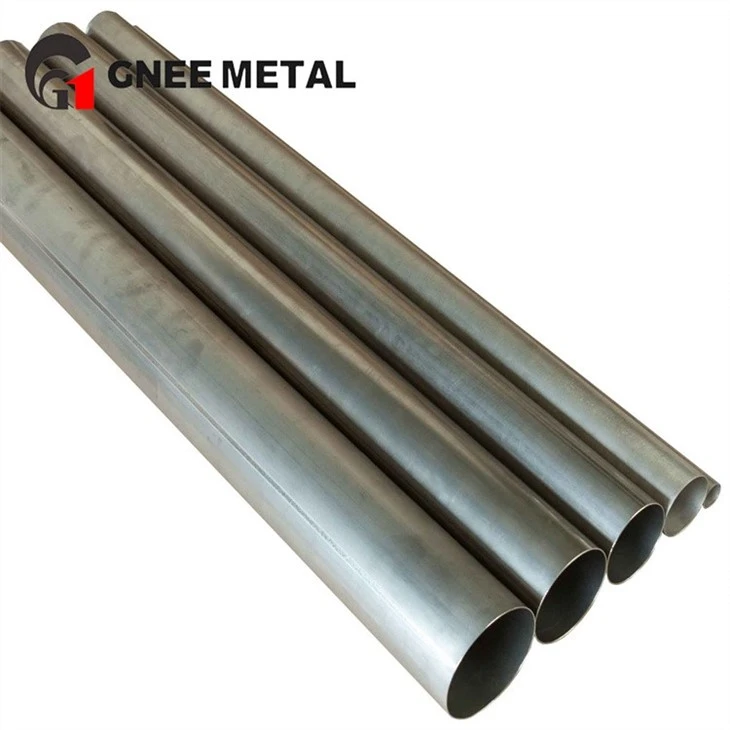

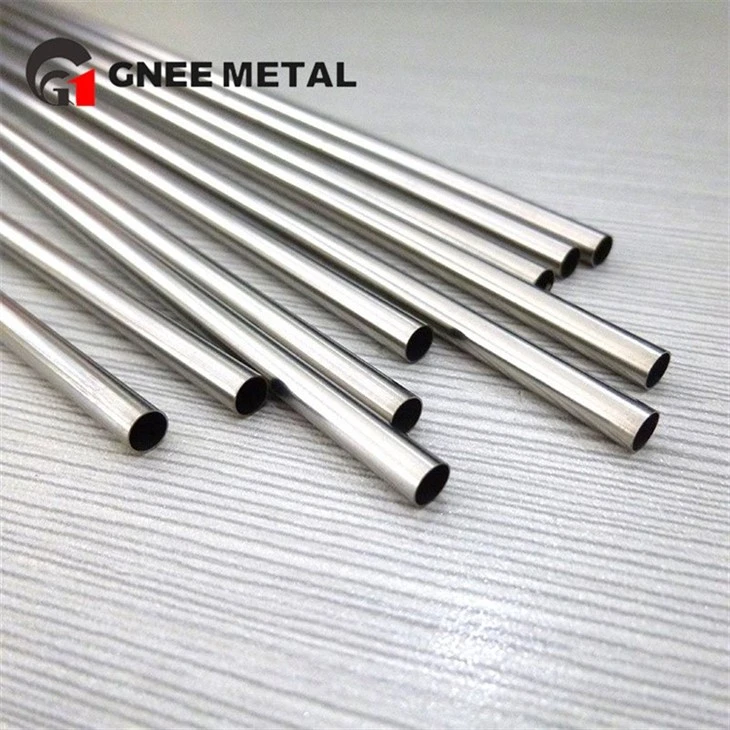

Gr9 Titanium Pipe
Propeller shafts and other products subjected to high mechanical loads in seawater and other chloride-containing environments. the excellent mechanical properties and corrosion resistance of GNEE tubing reduces the product life-cycle cost of the equipment and makes it an economical choice for many other applications.
Description
GNEE Ti Grade 9 (Ti 3Al-2.5V) is a titanium alloy tube with excellent seawater corrosion resistance and higher mechanical properties than stainless steel.
Products Description
The Ti-3-2.5 alloy is characterized by
Excellent corrosion resistance in seawater applications
Excellent resistance to pitting, crevice and erosion corrosion
High mechanical strength and superior strength-to-weight ratio
Good moldability and weldability
Resistance to stress corrosion cracking in chloride and acid gas environments
Very low thermal expansion
Excellent fatigue properties due to GNEE's proprietary process to control crystal texture
Top titanium product quality
| Nominal | OD | Wall | OD | Wall |
|---|---|---|---|---|
| Bore | in. | in. | mm | mm |
| 1/4" Sch. 10 | 0.540 | 0.065 | 13.72 | 1.65 |
| 1/4" Sch. 40 | 0.540 | 0.088 | 13.72 | 2.24 |
| 1/4" Sch. 80 | 0.540 | 0.119 | 13.72 | 3.02 |
| 3/8" Sch. 10 | 0.675 | 0.065 | 17.15 | 1.65 |
| 3/8" Sch. 40 | 0.675 | 0.091 | 17.15 | 2.31 |
| 3/8" Sch. 80 | 0.675 | 0.126 | 17.15 | 3.20 |
| 1/2" Sch. 5 | 0.840 | 0.065 | 21.34 | 1.65 |
| 1/2" Sch. 10 | 0.840 | 0.083 | 21.34 | 2.11 |
| 1/2" Sch. 40 | 0.840 | 0.109 | 21.34 | 2.77 |
| 1/2" Sch. 80 | 0.840 | 0.167 | 21.34 | 3.73 |
| 3/4" Sch. 5 | 1.050 | 0.065 | 26.67 | 1.65 |
| 3/4" Sch. 10 | 1.050 | 0.083 | 26.67 | 2.11 |
| 3/4" Sch. 40 | 1.050 | 0.113 | 26.67 | 2.87 |
| 3/4" Sch. 80 | 1.050 | 0.154 | 26.67 | 3.91 |
| 1" Sch. 5 | 1.315 | 0.065 | 33.40 | 1.65 |
| 1" Sch. 10 | 1.315 | 0.109 | 33.40 | 2.77 |
| 1" Sch. 40 | 1.315 | 0.133 | 33.40 | 3.38 |
| 1" Sch. 80 | 1.315 | 0.179 | 33.40 | 4.55 |
| 1 1/4" Sch. 5 | 1.660 | 0.065 | 42.16 | 1.65 |
| 1 1/4" Sch. 10 | 1.660 | 0.109 | 42.16 | 2.77 |
| 1 1/4" Sch. 40 | 1.660 | 0.140 | 42.16 | 3.56 |
| 1 1/4" Sch. 80 | 1.660 | 0.191 | 42.16 | 4.85 |
| 1 1/2" Sch. 5 | 1.900 | 0.065 | 48.26 | 1.65 |
| 1 1/2" Sch. 10 | 1.900 | 0.109 | 48.26 | 2.77 |
| 1 1/2" Sch. 40 | 1.900 | 0.145 | 48.26 | 3.68 |
| 1 1/2" Sch. 80 | 1.900 | 0.200 | 48.26 | 5.08 |
| 2" Sch. 5 | 2.375 | 0.065 | 60.33 | 1.65 |
| 2" Sch. 10 | 2.375 | 0.109 | 60.33 | 2.77 |
| 2" Sch. 40 | 2.375 | 0.154 | 60.33 | 3.91 |
| 2" Sch. 80 | 2.375 | 0.218 | 60.33 | 5.54 |
specificities
Ti-3-2.5 titanium has excellent corrosion resistance and is suitable for use in a variety of environments, including
Seawater and salt water
Inorganic salts
Moist chlorine
Alkaline solutions
Oxidizing acids
Organic substances and organic acids
Sulfur compounds
