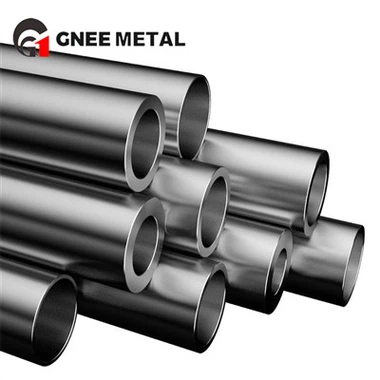

Grade 5 Titanium Welded Tube
Grade 5 titanium, also known as Ti-6Al-4V, is an alpha+beta type titanium alloy that is used in many industrial applications due to its superior strength-to-weight ratio, good corrosion resistance, and weldability.
Description
Grade 5 titanium alloy contains approximately 6% aluminum and 4% vanadium, and these alloying elements give it excellent mechanical properties, including high strength (comparable to some steels), excellent fatigue resistance, and moderate toughness. In addition, it is resistant to a wide range of corrosive media, including seawater, chlorides, and a variety of acid and alkali solutions.
High-quality Grade 5 titanium tubing that stands the test of time
Pressure Rating of Titanium Alloy Grade 5 Tubing
| Tube O.D. (in.) |
Wall Thickness of Tube (inches) | |||||||
|---|---|---|---|---|---|---|---|---|
| .028 | .035 | .049 | .065 | .083 | .095 | .109 | .120 | |
| Working Pressure (psig) | ||||||||
| 1/8 | 7900 | 10100 | ||||||
| 1/4 | 3700 | 4800 | 7000 | 9500 | ||||
| 5/16 | 3700 | 5400 | 7300 | |||||
| 3/8 | 3100 | 4400 | 6100 | |||||
| 1/2 | 2300 | 3200 | 4400 | |||||
| 3/4 | 2200 | 3000 | 4000 | 4600 | ||||
| 1 | 2200 | 2900 | 3400 | 3900 | 4300 | |||
Although titanium alloy welding is more challenging than ordinary carbon or stainless steel, Grade 5 titanium alloy has better weldability. It needs to be welded under inert gas protection, such as argon (TIG or MIG welding), to prevent oxidation and minimize contamination. Proper preheating, welding process control and post-weld heat treatment are essential to prevent cracks, reduce welding residual stresses and ensure the quality of welded joints.
Large scale factory production of Grade 5 alloy titanium tubing
Highly reliable team supplying Grade 5 metal titanium tubing
We can provide high quality products, good service and competitive price. We have been committed to producing high quality titanium products such as titanium tubes, titanium wires, titanium sheets, titanium strips, titanium rods and so on.
Our products are exported to more than 150 countries and have entered key industries such as shipbuilding, automotive, large power stations, medical, aerospace and so on.
Since the establishment of our company, we have been sticking to our goals and striving for them. Sustainable economic development is the theme of our overall strategy.
The company's business philosophy is customer first, honesty, and win-win cooperation. We would like to do our best to provide high quality service to our customers and sincerely hope to cooperate with friends from all over the world.
