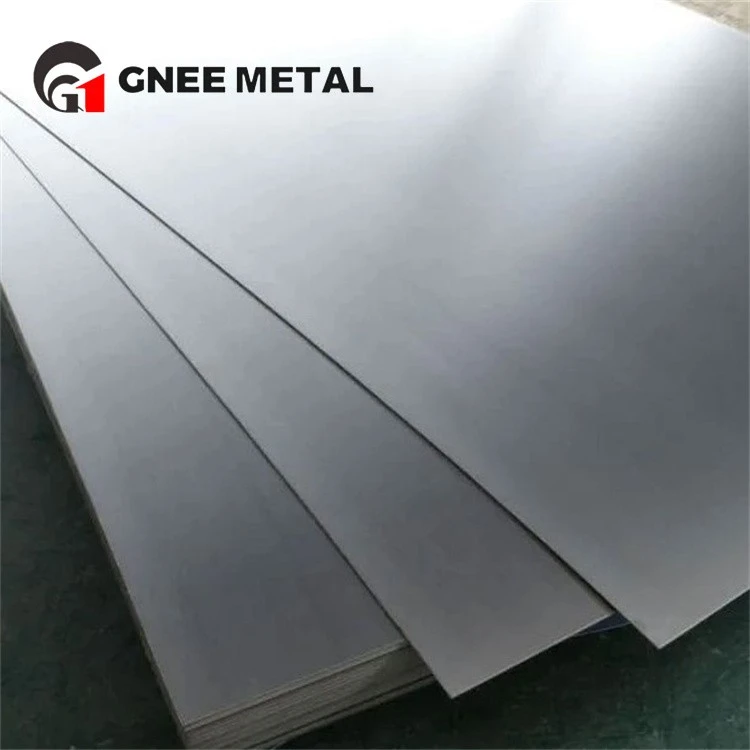

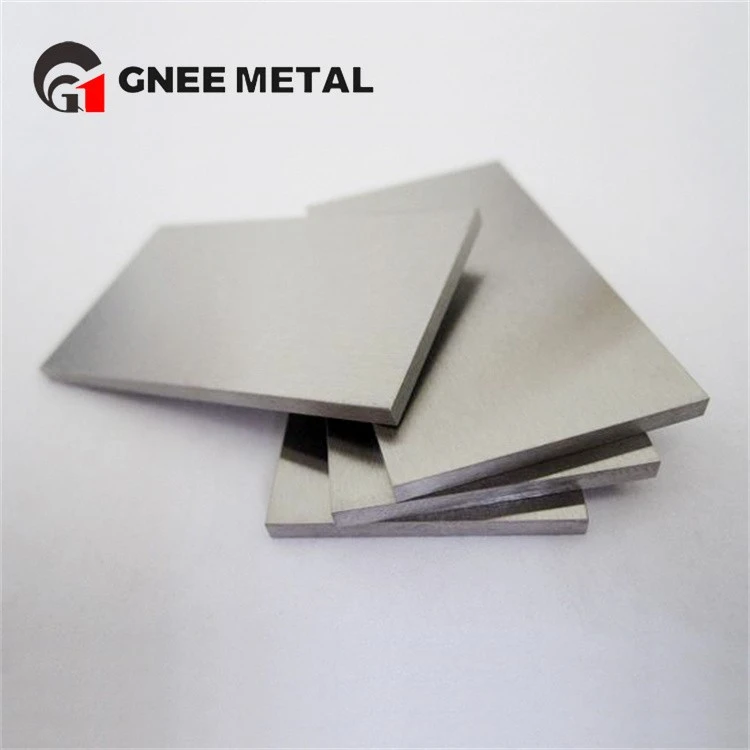

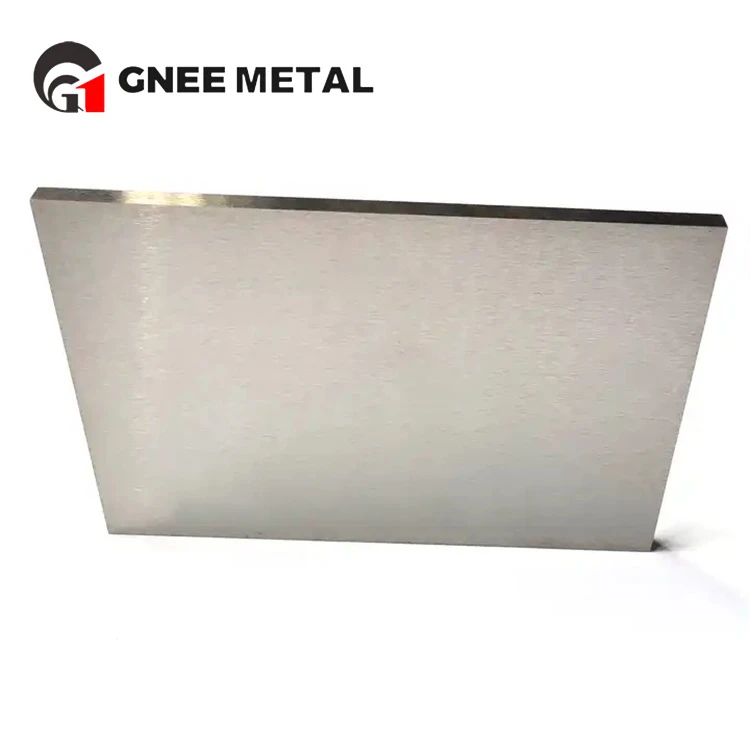

Airframe Components Forming Grade 5 Titanium Sheet
Grade 5 titanium sheet (Ti-6Al-4V) is also widely used in aerospace fuselage components due to its light weight, high strength, corrosion resistance and good machinability.
Description
Grade 5 titanium alloys have excellent corrosion resistance and are capable of long term stability in harsh environmental conditions, such as marine environments and chemically corrosive environments. Although airframe components are usually not subjected to the same extremely high temperatures as engine components, the good performance of Ti-6Al-4V at medium temperatures still provides an additional advantage.
Top quality Grade 5 titanium sheet
Typical physical properties for Ti6Al4V.
|
Property |
Typical Value |
|
Density g/cm3 (lb/ cu in) |
4.42 (0.159) |
|
Melting Range °C±15°C (°F) |
1649 (3000) |
|
Specific Heat J/kg.°C (BTU/lb/°F) |
560 (0.134) |
|
Volume Electrical Resistivity ohm.cm (ohm.in) |
170 (67) |
|
Thermal Conductivity W/m.K (BTU/ft.h.°F) |
7.2 (67) |
|
Mean Co-Efficient of Thermal Expansion 0-100°C /°C (0-212°F /°F) |
8.6x10-6 (4.8) |
|
Mean Co-Efficient of Thermal Expansion 0-300°C /°C (0-572°F /°F) |
9.2x10-6 (5.1) |
|
Beta Transus °C±15°C (°F) |
999 (1830) |
Specific applications for grade 5 alloy table plates
Structural frames: used to support wing structures to ensure that they retain their shape and strength during flight.
Skins and panels: for passenger doors, cargo doors and other areas that need to be sealed and protected.
Landing gear: Used to support the weight of the aircraft while on the ground and to absorb impact during landing.
Fasteners and Connectors: used to secure and connect various parts of the airframe to ensure its structural integrity.
Large scale factory production of Grade 5 alloy titanium sheet
Highly reliable team supplying Grade 5 metal titanium sheet
GNEE was established in 2008 with 16 years of manufacturing and sales experience. With many years of production experience and independent production factories, we can provide you with customized products. Meanwhile, we cooperate with many famous factories, which can provide you with large quantities of high quality metal. We have up to 200 employees and will continue to grow in the future. All of them are committed to providing you with better products and services. We are committed to providing you with the best products and services, and we will provide you with more favorable pricing and safe and fast transportation solutions. GENN is trustworthy. We look forward to working with you.
