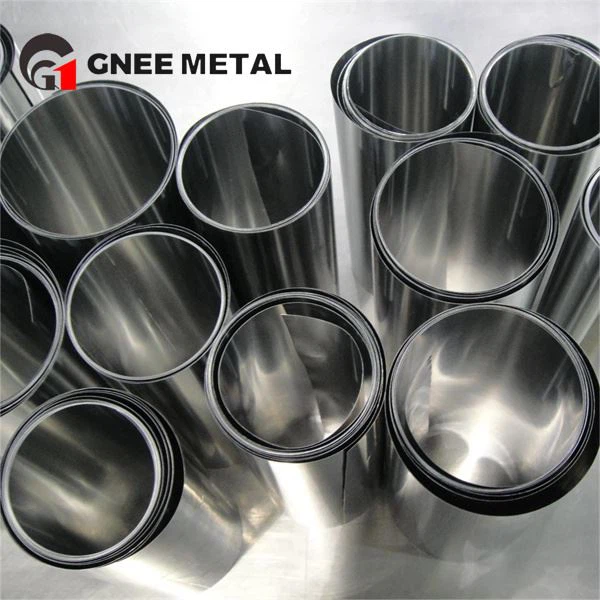

High Quality Titanium Alloy Strip Grade 7
Titanium Grade 7 (UNS R52400) has similar physical and mechanical properties to Grade 2. It has excellent welding and fabrication properties and is extremely resistant to corrosion, especially to acids, due to the addition of palladium.
Description
Titanium alloys have several advantageous properties that enable them to be used in industries such as automotive, consumer electronics, military, aerospace, medical, marine, and sporting equipment.
Titanium Grade 7 - 0.15 Palladium alloy is highly resistant to corrosion in reducing acids and resists localized attack in hot halide media. The presence of palladium helps to improve the alloy's corrosion resistance. This alloy is similar to Grade 2 alloy and has moderate strength and ductility.
- Dimension Standard : JIS, AISI, ASTM, GB, DIN, EN, etc
- Dimension:
T 0.5-5.0mm x W1000mm x L 2000-3500mm
T 6.0- 30mm x W1000-2500mm x L 3000-6000mm
T 30- 80mm x W1000mm x L 2000mm
Professional titanium material supplier - GNEE
Chemical Composition Requirements
|
Element |
Weight % |
| Ti |
Balance |
| Fe | ≤0.30 |
| Pd | ≤0.20 |
| O | ≤0.25 |
| N | ≤0.03 |
|
C |
≤0.08 |
| H | ≤0.015 |
Physical Properties
| Physical Properties | Metric | English |
| Density | 4.51g/cm³ | 0.163 lb/in³ |
- Modulus of Elasticity (E): At 70°F (20°C): 16.3 x 10 3 ksi (112 GPa)
- Modulus of Rigidity (G): At 70°F (20°C): 5.9 x 10 3 ksi (41 GPa)
- Coefficient of Expansion: 5.4 in/in.-°F (70°F to 932°F) 9.7 m/m-°C (20°C to 500°C)
- Resistivity: 21 Ω.in, (53.3 Ω.cm)
- Thermal Conductivity: 12.6 Btu-in/ft 2 hr-°F, (21.79 W/mK)
- Typical Mechanical Properties:
Annealed
Heat Treated: 1290 °F
Tensile Strength: 50 ksi (345 MPa) min – 65 ksi (448 MPa) typ
Recommended Operating Conditions: -300°F to 1000°F (-184°C to 540°C)
