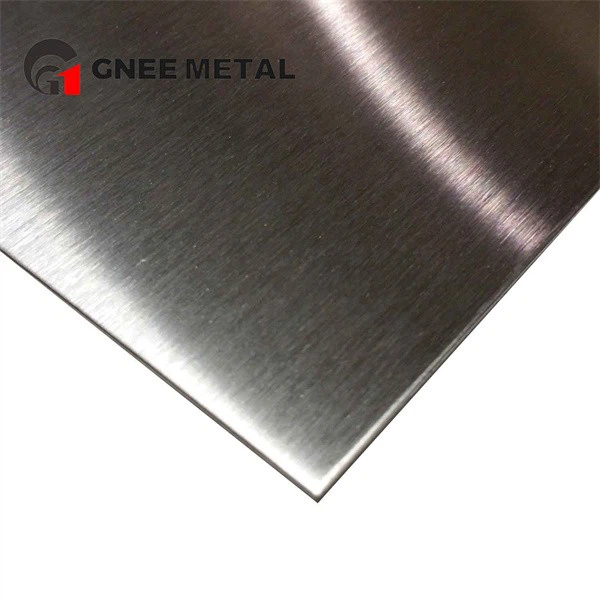

Titanium Grade 1 Plate
Grade 1 titanium alloy is a high purity titanium alloy, also known as CP (Commercially Pure) titanium alloy. Its chemical composition contains more than 99.5% titanium and has excellent properties such as good corrosion resistance, high strength, and low density.
Description
Grade 1 titanium alloy is often used to manufacture various parts in the fields of aviation, aerospace, navigation and chemical industry. In the medical field, Grade 1 titanium alloy is also widely used to manufacture artificial joints, implants and surgical instruments.
In addition, Grade 1 titanium alloy also has good machinability and can be hot-rolled, cold-rolled and other forming processes, as well as welding and brazing processes. It is a very high-quality metal material.
- Specification: ASTM B265 / ASME SB265
- Dimension Standard : JIS, AISI, ASTM, GB, DIN, EN, etc
- Dimension:
T 0.5-5.0mm x W1000mm x L 2000-3500mm
T 6.0- 30mm x W1000-2500mm x L 3000-6000mm
T 30- 80mm x W1000mm x L 2000mm
Professional titanium material supplier - GNEE
Chemical Composition Requirements
|
Element |
Weight % |
| Ti |
Balance |
| Fe | ≤0.20 |
| O | ≤0.18 |
| N | ≤0.030 |
|
C |
≤0.080 |
| H | ≤0.015 |
Physical Properties
| Physical Properties | Metric | English |
| Density | 4.51g/cm³ | 0.163 lb/in³ |
| Melting Point | 1670 °C | 3038 °F |
Main application areas
- Aerospace: aircraft engine parts, spacecraft shells, etc.
- Chemical: reactors, pipelines and other equipment
- Medical: artificial joints, dental implants and other medical devices

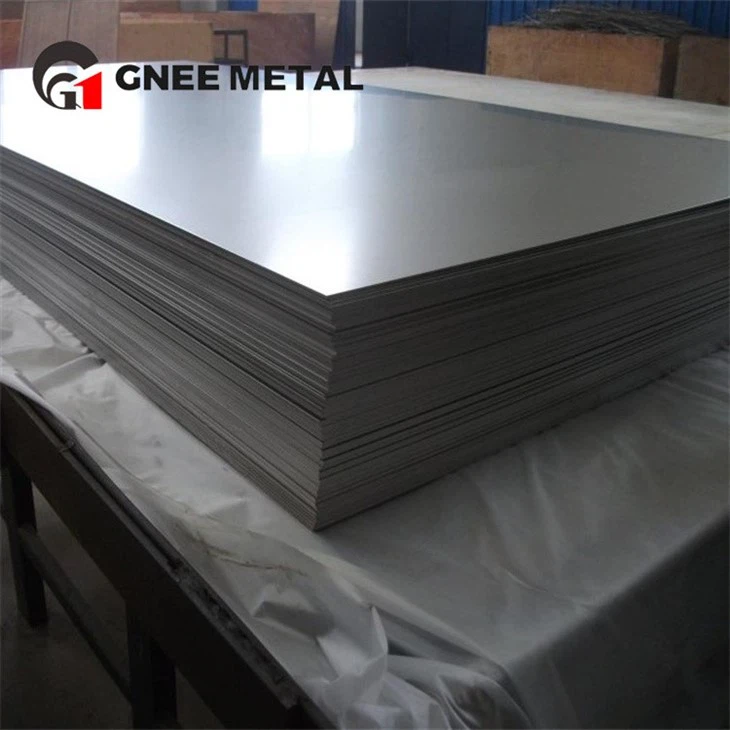

Large-scale factory production
