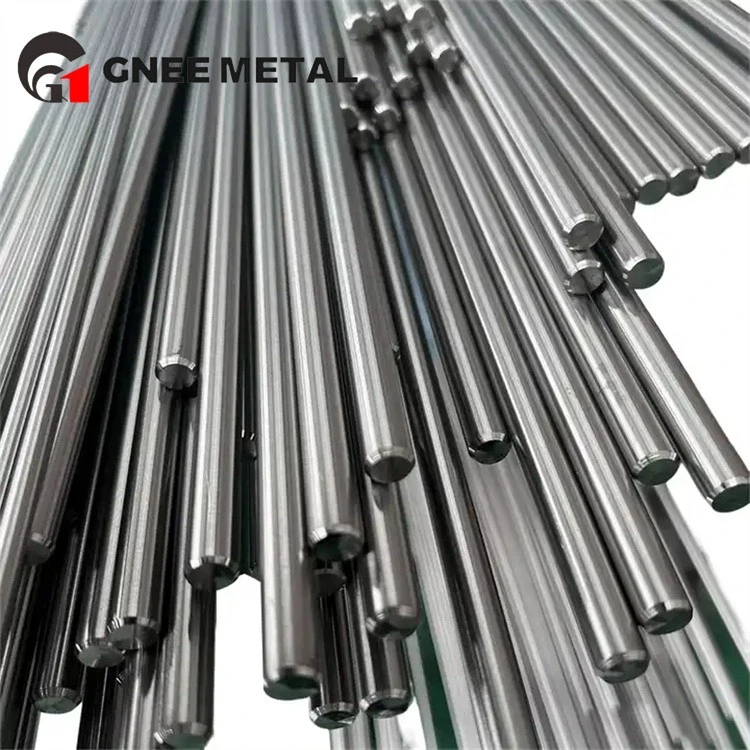

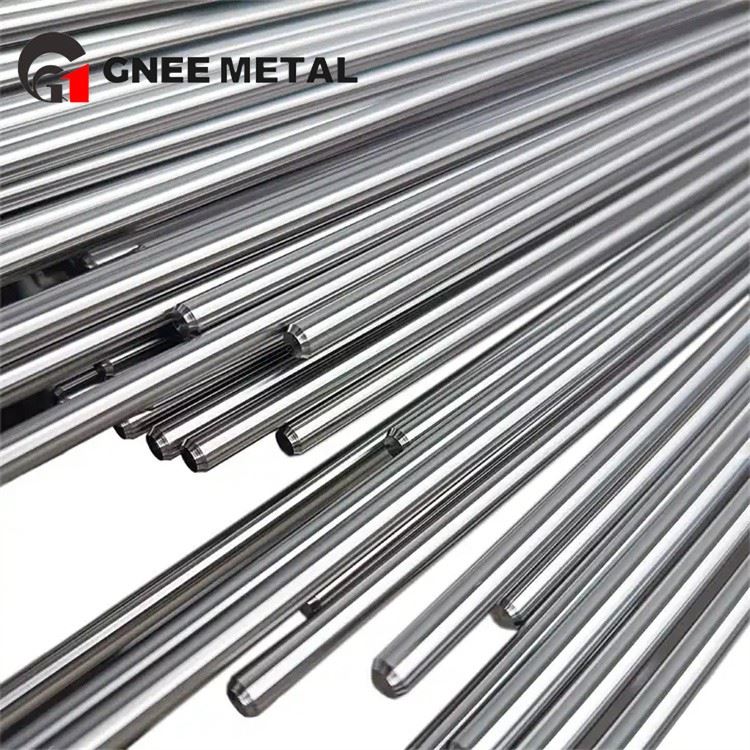

ASM 4940 Solid Grade 1 Titanium Rod
Grade 1 solid titanium rods have good wear resistance during machining, which can extend tool life and reduce machining cost.
Description
Features of Grade 1 titanium round bar
1. good cutting performance: Gr1 titanium bar has good cutting performance, suitable for turning, milling, drilling and other machining operations, can obtain high precision and surface quality.
2. Excellent welding performance: Gr1 metal titanium rods have good welding performance, capable of conventional welding, arc welding, laser welding and other processes, making it highly plastic and machinable in the manufacturing process.
Top quality ASM 4940 titanium round bar
Grade 1 Titanium of Mechanical Properties
| Hardness, Brinell | 120 | 120 | annealed |
|---|---|---|---|
| Hardness, Knoop | 132 | 132 | Estimated from Brinell. |
| Hardness, Rockwell B | 70 | 70 | annealed |
| Hardness, Vickers | 122 | 122 | Estimated from Brinell. |
| Tensile Strength, Ultimate | 240 MPa | 34800 psi | |
| Tensile Strength, Yield | 170 - 310 MPa | 24700 - 45000 psi | |
| Elongation at Break | 24 % | 24 % | |
| Reduction of Area | 35 % | 35 % | |
| Modulus of Elasticity | 105 GPa | 15200 ksi | In Tension |
| Compressive Modulus | 110 GPa | 16000 ksi | |
| Poisson's Ratio | 0.37 | 0.37 | |
| Charpy Impact | 310 J | 229 ft-lb | V-notch |
| Shear Modulus | 45 GPa | 6530 ksi |
Applications of Grade 1 industrial titanium rods:
1. chemical industry: due to its good chemical stability and corrosion resistance, GR1 titanium alloy is widely used in the manufacture of chemical equipment, reactors, storage tanks, pipelines, etc., for long-term stable operation in strong corrosive environments.
2. Marine engineering: It has good seawater corrosion resistance in seawater, so it is used to manufacture marine engineering equipment, submarine pipelines, marine equipment, etc. to improve the service life and reliability of marine engineering.
Delivery process of ASM 4940 solid titanium bar
Highly reliable factory supply ASM 4940 metal titanium rods
GNEE is a manufacturer specialising in the research, development, production, sales and service of titanium products such as titanium tubes, titanium rods, titanium sheets, titanium wires and titanium strips. Our company is located in Henan Province with convenient traffic. Our factory has been engaged in foreign markets for more than 16 years and has rich production experience. Our main markets are Dubai, Indonesia, Singapore, Vietnam, Malaysia, Philippines, Chile, Mexico, Israel, Spain and so on.
