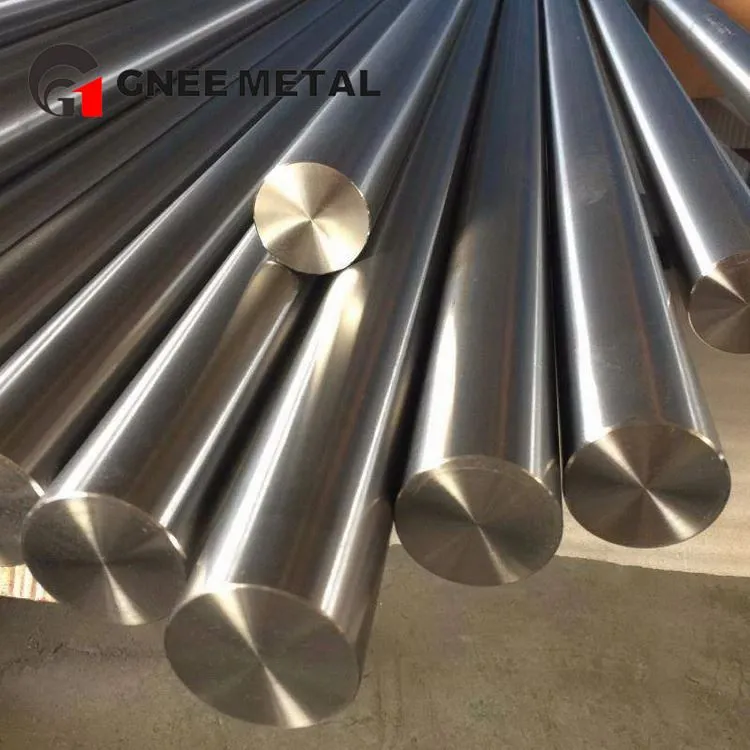

EN 10204 3.1 Grade 2 Titanium Rod
EN 10204 is a European standard that specifies the types of quality documentation for metal products in their delivered state. Of these, the type 3.1 certificate is the most commonly used one.
Description
Grade 2 titanium rods have good machinability and can be shaped by cold or hot working, such as forging, rolling and drawing processes. This alloy has high plasticity and toughness, and different properties can be obtained by adjusting the machining process and heat treatment. Meanwhile, TA2 (GR2) titanium round bars have excellent welding properties and can be welded by methods such as argon arc welding and resistance welding.
Industry Leading EN 10204 3.1 Grade 2 Titanium Round Bar Production Technology
Chemistry Typical
Titanium: Balance
Iron: 0.30 max
Oxygen: 0.25 max
Carbon: 0.10 max
Nitrogen: 0.03 max
Hydrogen: 0.015 max
Residuals each 0.10 max, total 0.40 max
Physical Properties of Grade 2 Titanium
Density: 0.163 lbs/in3, 4.51 g/cm3
Mean Coefficient of Thermal Expansion, in/inl° F (mm/ml° C):
70 - 212 ° F (20 - 100 ° C): 4.78 x 10-6 (8.6)
Thermal Conductivity: BTU-in/h-ft-° F (W/m-° K):
At 70 ° F (21 ° C): 114 (16.4)
Modulus of Elasticity, ksi (MPa)
15.2 x 103 (105 x 103) in tension
Melting Point: 3040 ° F (1670 ° C)
Grade 2 round bars are used in a variety of industrial applications, such as:
- Naval ship components
- Food processing and manufacturing
- Chemical processing equipment
- Bleaching/washing equipment
- Power plant cooling system parts
- Salt water concentration/evaporation
- Medical equipment Consumer products
- Sports and leisure equipment
- Offshore hydrocarbon mining/drilling
Packaging and transportation of EN 10204 3.1 Grade 2 titanium rods
EN 10204 3.1 Grade 2 pure titanium rods production facilities
GNEE was established in 2008 with 16 years of manufacturing and sales experience. With many years of production experience and independent production factories, we can provide you with customized products. Meanwhile, we cooperate with many famous factories, which can provide you with large quantities of high quality metal. We have up to 200 employees and will continue to grow in the future. All of them are committed to providing you with better products and services. We are committed to providing you with the best products and services, and we will provide you with more favorable pricing and safe and fast transportation solutions. GENN is trustworthy. We look forward to working with you.
