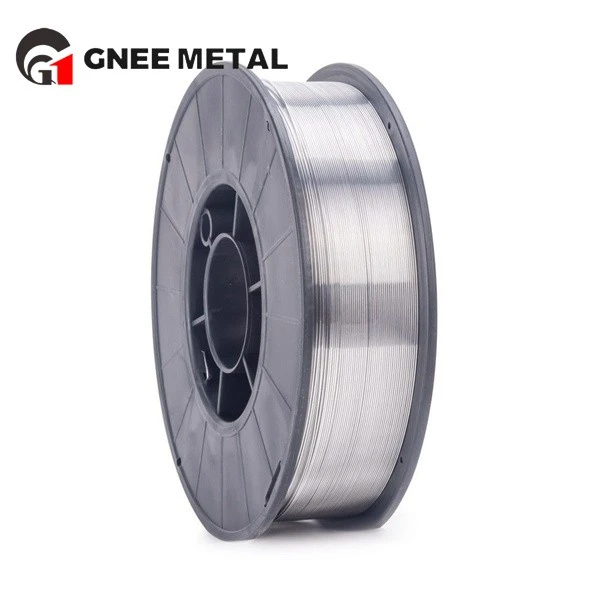

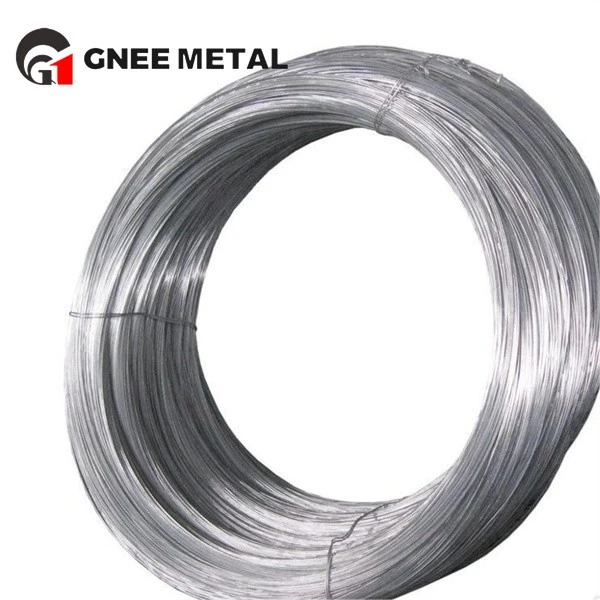

Tungsten Rhenium Alloy Wire
Tungsten rhenium alloy wire has good ductility and strength.GNEE is experienced in providing the highest quality tungsten rhenium alloy products. We offer a variety of shapes to meet your requirements.
Description
Tungsten rhenium alloy wire is a refractory material with good ductility and strength. Tungsten rhenium alloys have a high melting point of 3050°C and a high temperature recrystallization temperature of 1900°C, allowing them to be used in aerospace and temperature measurement applications. The addition of rhenium improves the ductility of the wire after recrystallization. Specific resistance as well as vibration strength are further improved. It has been widely used in the thermocouple market, connections, medical, aerospace, furnace, and heat treatment industries.
Products Description
Tungsten Rhenium Alloy Wire Specifications
|
Product |
Composition |
Specifications |
|
Tungsten Rhenium Alloy Rod |
WRe3%, WRe5%,WRe25%,WRe26% |
φ:1-17 mm |
|
Tungsten Rhenium Alloy Wire |
WRe3%, WRe5%,WRe25%,WRe26% |
φ:0.1mm,0.2mm,0.25mm,0.3mm,0.35mm,0.5mm, 1.0mm |
|
Tungsten Rhenium Alloy Plate |
WRe3%, WRe5%,WRe25%,WRe26% |
Length: 300mm |
|
Width: 300mm |
||
|
Thickness: 1-20mm |
||
|
Tungsten Rhenium Alloy Thermocouple |
WRe3/25, WRe5/26 |
φ:0.1mm,0.2mm,0.25mm,0.3mm,0.35mm,0.5mm |
|
Tungsten Rhenium Alloy Sheet |
WRe3%, WRe5%,WRe25%,WRe26% |
Length: 10-350mm |
|
Width: 600mm max. |
||
|
Thickness: 0.2mm min. |
Electrical Characteristics
Resistivity (μOhmcm): 29
Mechanical Properties
Elongation at break (%): < 20.0
Modulus of elasticity (GPa): 370.0 - 430.0
Tensile strength (MPa): 1310.00 - 2100.00
Thermal properties
Coefficient of thermal expansion ( x10-⁶ K-1 ): 4.480 @0-500°C
Tungsten rhenium alloy wire applications
Tungsten rhenium alloy wires have been used in the furnace, electronics and aerospace industries. Other applications for tungsten rhenium wire include:
Microwave communications
-Thermocouples
-Furnaces
-Connections
