Titanium Grade 23 (6Al-4V ELI)
Oct 23, 2025
GNEE can provide the form
Products Description
Brilliant for saltwater environments
Machinable at slow speed with the right amount of coolant flow and high feed rates
Great fracture toughness and fatigue strength
Highly durable and resistant to corrosives
Titanium alloy grade 23 is a strong and durable alloy with excellent resistance against acidic or gaseous corrosions.
It is tough in air and saltwater environments and thus is deployed in the manufacturing of aerospace and marine vessels.
It is the most commonly used alloy of the alpha-plus-beta class.
The interstitial elements like Iron and Oxygen are low in concentration as compared to many other Titanium alloys such as TA1 (GR.1) , TA2 (GR.2), TA3 (GR.3), TA4 (GR.4). It confers to improved ductility of the material. Hence, it is also known as Ti-6Al-4V-ELI, where ELI stands for Extra Low Interstitial.
Being castable, it is also used in sporting goods.
Chemical Properties:
Titanium (%): 87.6-91
Aluminum (%): 5.5-6.5
Vanadium (%): 3.5-4.5
Others (%): Remainder
Mechanical Properties:
Yield Strength (MPa): 790
Yield Strength (Ksi): 115
Tensile Strength (MPa): 860
Tensile strength (ksi): 125
Break Elongation : 15 %
Elasticity Modulus (GPa): 113.8
Elasticity Modulus (ksi): 16150
Hardness (Rockwell C): 35
Physical Properties:
Density: 0.160(Lb/in3) /4.43 (g/cm3)
Expansion Coefficient: 4.78(75-200 oF) /8.60 (25-100 oC)
Dynamic Shear Modulus: 44(GPa) /6380 (psi)
Melting point: 2919-3020(oF) / 1604 – 1660(oC)
Thermal Conductivity: 6.70 (W/mK) / 46.5(BTU-in/hr-ft2–oF)
Poisson's ratio (No unit): 0.342
Key Features:
Incredible ductility: The Ti 6Al-4V ELI is a highly malleable material. It can be shaped easily into parts that are desirable for machinery. The ELI property confers this quality to the alloy, and hence it is readily accepted in multiple industrial manufacturing units.
Superior damage and corrosion resistance: Titanium grade 23 can efficiently resist gaseous and acidic corrosion of any form. Thus, it can stay free from damage for a longer period, thus increasing the lifetime of the machinery formed out of it.
Lightweight but durable: Though this alloy is lighter than many, yet it has impressed the industries with its incredible strength. Thus, it is effectively used in the construction of aerospace and marine industries.
Products provided by GNEE
| Product Form | Standard Grades | Standard Specifications (ASTM/ASME) | Common Dimensions | Common States |
|---|---|---|---|---|
| Titanium Pipe & Tube | ||||

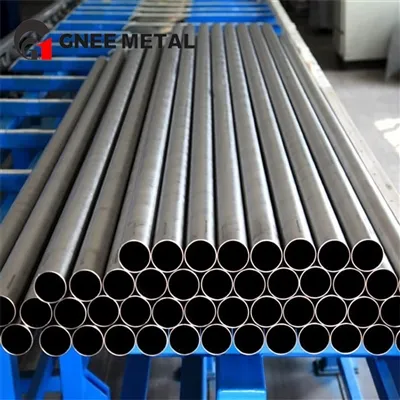

| Seamless Pipe | Gr. 1, Gr. 2, Gr. 3, Gr. 7, Gr. 9, Gr. 12, Gr. 16, Gr. 17 | ASTM B861, ASME SB861 | OD: 6 mm - 114 mm (1/4" - 4") Wall Thickness: 0.5 mm - 8.0 mm Length: up to 15 m |
Annealed |
| Welded Tube | Gr. 1, Gr. 2, Gr. 9, Gr. 12 | ASTM B862, ASME SB862 | OD: 3 mm - 100 mm Wall Thickness: 0.3 mm - 3.0 mm Length: up to 15 m |
Annealed, Welded & Cold-Drawn |
| Titanium Bar & Rod | ||||
| Bar (Round, Hex, Square) | Gr. 1, Gr. 2, Gr. 3, Gr. 4, Gr. 5 (Ti-6Al-4V), Gr. 7, Gr. 9, Gr. 12, Gr. 16, Gr. 17, Gr. 23 (Ti-6Al-4V ELI) | ASTM B348, ASME SB348 | Diameter / Width: 5 mm - 300 mm Length: 3 m, 4 m, or cut to length |
Hot Rolled, Cold Drawn, Annealed, Forged |
| Wire & Rod | Gr. 1, Gr. 2, Gr. 4, Gr. 5 | ASTM B348, ASTM F67, ASTM F136 | Diameter: 0.5 mm - 10 mm (Wire) Diameter: 10 mm - 25 mm (Rod) Coil Weight: Custom |
Annealed, Cold Worked |
| Titanium Plate & Sheet | ||||
| Plate | Gr. 1, Gr. 2, Gr. 3, Gr. 4, Gr. 5 (Ti-6Al-4V), Gr. 7, Gr. 9, Gr. 12, Gr. 16, Gr. 17, Gr. 23 (Ti-6Al-4V ELI) | ASTM B265, ASME SB265 | Thickness: 4.76 mm (3/16") - 100 mm Width: 600 mm - 2000 mm Length: up to 6000 mm |
Hot Rolled, Annealed, Mill Annealed |
| Sheet | Gr. 1, Gr. 2, Gr. 3, Gr. 4, Gr. 5, Gr. 7, Gr. 9, Gr. 12 | ASTM B265, ASME SB265 | Thickness: 0.1 mm - 4.75 mm Width: 600 mm - 1500 mm Length: up to 3000 mm |
Cold Rolled, Annealed |
| Titanium Foil | ||||
| Foil / Strip | Gr. 1, Gr. 2 | ASTM B265 | Thickness: 0.025 mm - 0.1 mm Width: 50 mm - 500 mm Coil / Cut Length |
Cold Rolled, Annealed |
