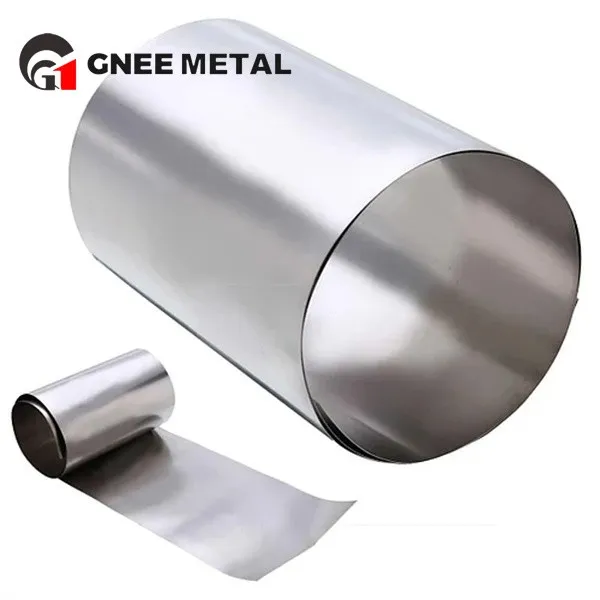

Grade 9 Ti-3Al-2.5V Thin Titanium Strip

Grade 9 titanium foils offer a variety of advantages and are used in a wide range of applications. The main advantages include.
Excellent strength and toughness: the ability to maintain stable properties at high temperatures and pressures.
Good corrosion resistance: able to resist corrosive media such as seawater and salt water.
Good weldability: suitable for conventional welding, arc welding, laser welding and other processes.
Low density: lighter than many other metals, suitable for components requiring lightweight design.



World-class Ti-3Al-2.5V titanium foil production technology



Chemical Composition

The chemical composition of grade 9 Ti 3Al 2.5V alloy is outlined in the following table.

Element	Content (%)
Titanium, Ti	92.755 - 95.5
Aluminum, Al	2.5 - 3.5
Vanadium, V	2-3
Iron, Fe	≤ 0.20
Oxygen, O	≤ 0.15
Carbon, C	≤ 0.050
Nitrogen, N	≤ 0.030
Hydrogen, H	≤ 0.015
Other, each	≤ 0.050
Other, total	≤ 0.30



Mechanical Properties (Annealed Condition)

Property	Value
Tensile Strength, min	620 MPa (90 ksi)
Tensile Strength, typical	650 - 750 MPa (94 - 109 ksi)
Yield Strength (0.2% offset), min	520 MPa (75 ksi)
Yield Strength, typical	550 - 650 MPa (80 - 94 ksi)
Elongation in 50mm, min	15%
Elongation, typical	18 - 22%
Hardness	200 - 240 HV
Modulus of Elasticity	107 GPa (15.5 Msi)
Bend Radius (min)	2.0 x thickness

---



Physical Properties

Property	Value
Density	4.48 g/cm³ (0.162 lb/in³)
Melting Point	1670°C (3038°F)
Thermal Conductivity	8.5 W/m·K
Electrical Resistivity	1.5 µΩ·m
Coefficient of Thermal Expansion	9.0 µm/m·°C
Magnetic Permeability	Non-magnetic
Beta Transus Temperature	935°C ± 15°C

Grade 9 titanium foil has a wide range of applications, including.
Aerospace: Used in the manufacture of surface coverings for aircraft wings, shielding for spacecraft, etc.
Military: for the manufacture of housings for ships, warships, tanks and other military vehicles.
Electronic information field: used in the manufacture of precision processing equipment, to improve the heat dissipation performance of computers and so on.



Large-scale factory production of Ti-3Al-2.5V alloy titanium foils



Available Specifications

Parameter	Range
Thickness	0.10mm - 1.50mm (0.004" - 0.060")
Thickness Tolerance	±5% to ±8% depending on thickness
Strip Width	5mm - 600mm (0.2" - 24")
Width Tolerance	±0.1mm to ±0.5mm depending on width
Length	Coils: up to 1000m; Cut strips: as specified
Temper	Annealed, Half-Hard, Full-Hard, Stress Relieved
Surface Finish	Bright Annealed, Pickled, Polished
Edge Condition	Slit, Sheared, Deburred, Rounded
Core Size	76mm (3"), 152mm (6"), 305mm (12")



Why choose our Ti-3Al-2.5V thin titanium strip

Team Advantage
We have a team of highly skilled professionals who are committed to providing high quality products and services to our customers. Our team has the following advantages over our competitors:
Technical Expertise: Our team has excellent technical expertise in the production of titanium products.
Experience: Our team has many years of experience in the industry and a deep understanding of the market.
Customer orientated: We are customer orientated and prioritise our customers' needs.
Responsive: Our team is responsive and able to quickly resolve any issues that arise.
Communication: We have excellent communication skills and keep our customers informed throughout the production process.
