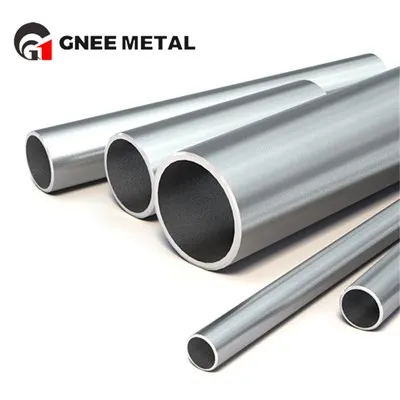

GR2 Titanium Micro Tubing For Manufacturing
GR2 Miniature Titanium Tubing is a miniature tubing made from Grade 2 pure titanium for a variety of precision manufacturing and high-end applications.
Description
Advantages of GR2 titanium tubing:
1. Corrosion resistance: Grade 2 titanium has extremely high corrosion resistance and is able to operate stably for long periods of time in a wide range of corrosive media, making it particularly suitable for use in precision instruments and equipment.
2. high strength: grade 2 titanium has high strength and toughness, able to withstand large mechanical loads.
3. High surface finish: The high surface finish of titanium tubing helps to reduce fluid resistance and improve system efficiency.
First-class GR2 titanium tube production process
| PHYSICAL PROPERTIES | ||||||
|---|---|---|---|---|---|---|
| Density | Electrical conductivity (% IACS) | Thermal conductivity (BTU-in/hr-ft²-°F) | Specific heat (BTU/lb-°F) | Thermal expansion (1/°F) | Thermal expansion | Melting Point (°F) |
| 0.163 | 4.11 | 111 | 0.124 | 4.78E-06 | – | 3040 |
| Mechanical Properties | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Property | Minimum | Maximum | |||||||
| Yield Strength Range (Rp0.2 Offset) (ksi) | 25 | – | |||||||
| Tensile Strength Range (Rm) (ksi) | 35 | – | |||||||
| Elongation (AL=5 x Ø) | 24.0% | 29.0% | |||||||
| Brinell Hardness (H) | – | 120 | |||||||
| Modulus of Elasticity (ksi) (E): 15200 | |||||||||
| Machineability General Index: 40% | |||||||||
Application of GR2 miniature titanium tube:
1. Precision instruments: used to manufacture piping systems in precision instruments to ensure the stability and accuracy of the system.
2. medical equipment: used in the manufacture of catheters and infusion tubes in medical equipment to ensure biocompatibility and safety.
3. Aerospace: Used in the manufacture of precision tubing in aerospace equipment to improve system reliability and performance.
Delivery process of GR2 titanium metal tubes
Highly reliable factory supply GR2 titanium round tube
The company has obtained iso9001:2015 quality management system certification, iso14001:2015 environmental management system certification, ISO 45001:2018 occupational health and safety management system certification, PED 2014/68/EU Pressure Equipment Directive certification, DNV-GL material manufacturer certification, SGS product quality certification and other certificates and qualifications. We strictly implement GB/T 3639-2009, ASTM A519, DIN2391, JIS G3445 and other national and international standards to ensure the quality of our products.
