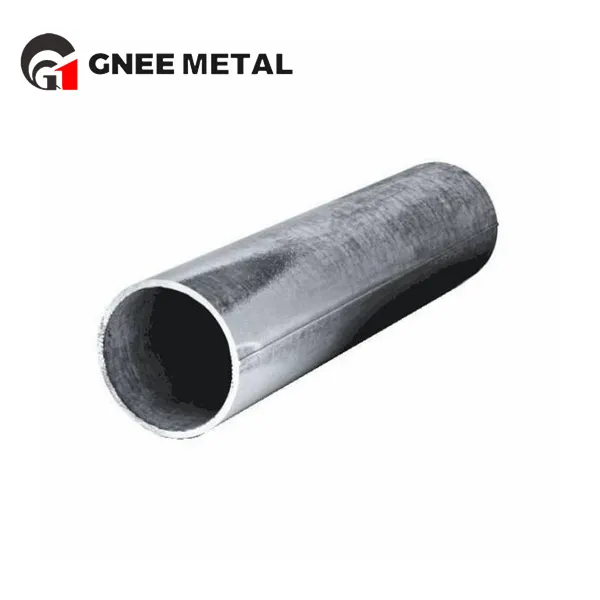

Gr9 Titanium Pipe For Hydraulic Tubing
Gr.9 titanium alloy tube is a high-performance alloy material with a wide range of applications. Its excellent properties and processability make it an important material for aviation, aerospace, medical and chemical industries.
Description
Application areas of Gr9 titanium round tube:
1. industrial hydraulic system: Gr9 grade titanium metal pipe is widely used for high pressure piping in industrial hydraulic systems, such as injection molding machines, die-casting machines, metallurgical equipment, etc.
2. aviation hydraulic system: in the field of aerospace, Gr9 titanium seamless tubes are used in the manufacture of aircraft and spacecraft hydraulic systems, providing lightweight, high strength and corrosion resistance.
3. marine engineering: in marine engineering, Gr9 titanium tubes are used to manufacture corrosion-resistant hydraulic pipes for seawater and marine environments.
First-class Gr9 Titanium Tube Production Process
Physical Properties
The physical properties of grade 9 Ti 3Al 2.5V alloy are tabulated below.
| Properties | Metric | Imperial |
|---|---|---|
| Density | 4.48 g/cm3 | 0.162 lb/in3 |
| Melting point | ≤ 1700°C | ≤ 3090°F |
Mechanical Properties
The following table shows mechanical properties of grade 9 Ti 3Al 2.5V alloy.
| Properties | Metric | Imperial |
|---|---|---|
| Tensile strength | 620 MPa | 89900 psi |
| Yield strength | 530 MPa | 76900 psi |
| Poisson's ratio | 0.3 | 0.3 |
| Elastic modulus | 100 GPa | 14500 ksi |
| Shear modulus | 44 GPa | 6380 ksi |
| Elongation at break | 20% | 20% |
| Hardness, Vickers | 300 | 300 |
Manufacturing process:
Seamless molding: Gr9 titanium tubes are manufactured by cold drawing or hot extrusion process to ensure that the tubes have uniform wall thickness and good surface quality.
Precision machining: Hydraulic tubing needs to be precision machined to ensure accurate dimensions and a smooth surface to meet the high precision requirements of hydraulic systems.
Professional Recognized Factory Supply Gr9 Titanium Round Tube
The company has obtained iso9001:2015 quality management system certification, iso14001:2015 environmental management system certification, ISO 45001:2018 occupational health and safety management system certification, PED 2014/68/EU Pressure Equipment Directive certification, DNV-GL material manufacturer certification, SGS product quality certification and other certificates and qualifications. We strictly implement GB/T 3639-2009, ASTM A519, DIN2391, JIS G3445 and other national and international standards to ensure the quality of our products.
