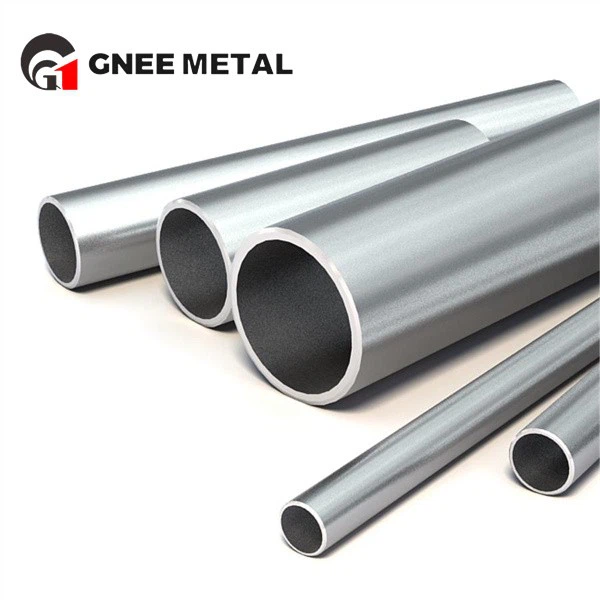

Grade 1 Titanium Welded Pipe
Grade 1 titanium is the first of four industrially pure titanium grades. It is the softest and most ductile of these grades. It has maximum formability, excellent corrosion resistance and high impact toughness. Grade TA1 is the material of choice for any application that requires easy formability and is typically available as titanium plate and titanium tubing.
Description
Welded titanium pipe is a kind of pipe made of titanium as the main material through welding process. It plays a key role in many fields such as aerospace, chemical industry, and medical treatment.
Specification : ASTM B388, B862; GB/T 26057, GB/T 3625
Pipe Range : ½"NB to 24"NB / SCH 10 – SCH XXS
Tubes Range: 1mm OD to 254mm OD / Thickness 0.1 to 20mm.
Type : Welded
Welding process characteristics
Welding method: Commonly used welding methods include tungsten inert gas shielded welding (TIG welding) and metal inert gas shielded welding (MIG welding). TIG welding has a stable arc and beautiful weld shape, which is suitable for welding thin plates and precision structures; MIG welding has high welding efficiency and is suitable for welding medium and thick plates.
Shielding gas: Since titanium is very easy to react with oxygen, nitrogen, hydrogen and other elements in the air at high temperatures, resulting in weld embrittlement and performance degradation, high-purity inert gas, such as argon, must be used for protection during welding.
Groove design: The groove forms of titanium tube welding are usually V-shaped, U-shaped, etc. The groove angle is generally between 60° and 90°, the blunt edge thickness is between 0.5mm and 1.5mm, and the gap is between 1mm and 3mm. Reasonable groove design helps to ensure the quality of the weld and the smooth progress of the welding process.
Comparison of similar grades of industrial pure titanium composition
|
Grades |
O |
N |
C |
H |
Fe |
Single |
Total | Ti |
|
Grade 1 |
0.18 |
0.03 |
0.08 |
0.015 |
0.20 |
0.1 |
0.4 | Remain |
|
Ti 1 |
0.12 |
0.05 |
0.06 |
0.013 |
0.15 |
0.1 |
0.4 | Remain |
First-class titanium production technolog
Grade 1 titanium wire is widely used in the following fields:
Aerospace: It can be used to manufacture aircraft structural parts, engine parts, wing connectors, etc., while reducing the weight of the aircraft, it can meet the requirements of high strength and high corrosion resistance of materials in the aerospace field.
Medical equipment: Due to its good biocompatibility and corrosion resistance, it is often used to manufacture artificial joints, implants, dental instruments, surgical instruments, etc.
Chemical industry: It is used to manufacture pipes, valves, heat exchangers, reactors, etc. of chemical equipment, and can resist corrosion from chemical media.
Marine engineering: It is suitable for manufacturing structural parts of offshore platforms, seawater desalination equipment, parts of marine ships, etc., and can resist erosion from seawater.
Sports goods: It can be used to manufacture sports equipment such as golf clubs, bicycle parts, tennis rackets, etc., and improve the performance of sports equipment by taking advantage of its light weight and high strength.
Industry-leading titanium production technology
