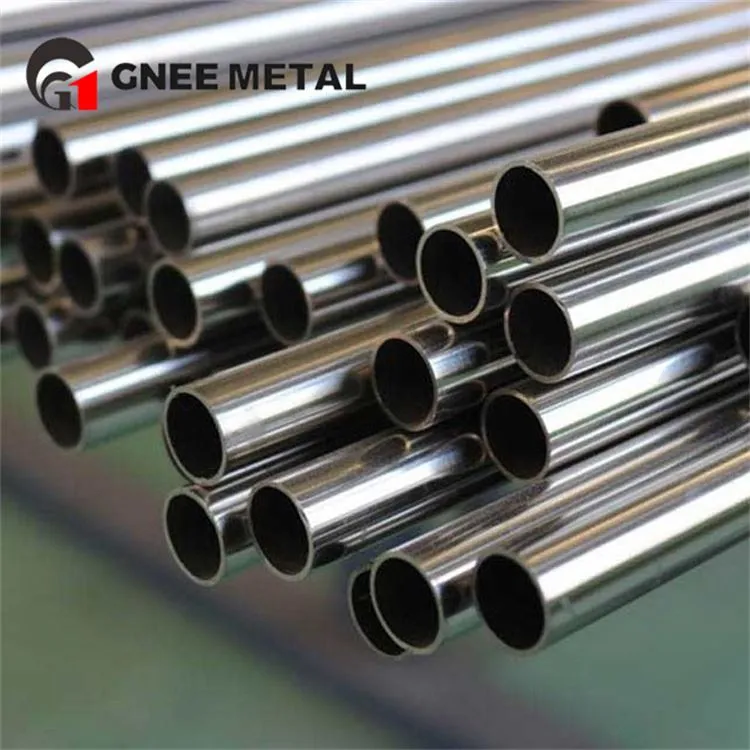

Gr2 Seamless Titanium Pipe

Gr2 seamless titanium pipe/tube has the character of the light weight, corrosion resistance, high strength, high hardness, high temperature and low temperature performance is good, it is widely used a heat exchange, such as tubular heat exchanger, coil is heat exchanger, serpentine tube heat exchanger, condenser, evaporator and conveying pipe.

Titanium Industries offers a wide range of Grade 2 Titanium Seamless Pipe in our Titanium Pipe and Fittings section. The weight of Grade 2 Titanium Seamless Pipe is in pounds and based on density of 0.163 lbs/cubic inch. The dimensional tolerances are in accordance with ASME B36.19M and ASME B36.10M - ASME B36.19 wall thickness pipes does not conform to ASME B36.10M.



Item	Specification
Material Grade	ASTM B338 Grade 2 (UNS R50400)
Product Name	GR2 Seamless & Welded Titanium Tube
Available Forms	Straight Tube, U-Bend Tube, Coiled Tube, Heat Exchanger Tube
Manufacturing Process	Seamless / Welded / Cold Drawn
Outside Diameter (OD)	3.0 mm – 114.3 mm (1/8" – 4")
Wall Thickness (WT)	0.3 mm – 10.0 mm
Length	Max. 12,000 mm or Custom Cut Length
Size Standard	Metric & Imperial Sizes Available
Dimensional Tolerance	ASTM B338 / ASTM B861 or Customer Requirements
End Finish	Plain End, Beveled End, Deburred End
Surface Finish	Pickled, Bright Annealed (BA), Polished, Sand Blasted
Tube Condition	Annealed (M), Cold Worked (CW)
Shape	Round (Standard), Customized Profiles Available
Manufacturing Standards	ASTM B338, ASTM B861, ASTM SB338, ASME SB861
Inspection Documents	EN 10204 3.1 Mill Test Certificate
Third-Party Inspection	SGS, BV, TÜV, Lloyd's Register Available
NDT Inspection	Eddy Current Test, Ultrasonic Test, Hydrostatic Test
Packaging	Plastic Caps + Waterproof Wrapping + Export Wooden Case
MOQ	1 Piece
OEM & Custom Service	Available
Sample	Available Upon Request
Lead Time	Usually 7–25 Days Depending on Quantity
Export Markets	North America, Europe, Southeast Asia, Middle East



Chemical Component

Grade	Fe (max)	C (max)	N (max)	O (max)	H (max)	Residuals Elements Each(max)	Residuals Elements Total(max)
Gr2	0.3	0.08	0.03	0.25	0.015	0.1	0.4



Mechanical Property

Grade	Tensile strength,Mpa (min)	Yield strength,MPa (min)	Elongation, % (min)
Gr2	345	275	20





Grade	Country / Standard
ASTM Grade 2	USA
EN 3.7035	Europe
JIS TP340	Japan
GB TA2	China



Feature	GR1 Titanium Tube	GR2 Titanium Tube
Material Type	Commercially Pure Titanium	Commercially Pure Titanium
UNS Number	R50250	R50400
Strength Level	Lower Strength	Medium Strength
Corrosion Resistance	Excellent	Excellent
Formability	Superior	Very Good
Weldability	Excellent	Excellent
Pressure Capability	Lower	Higher
Fabrication	Easier forming and bending	Better balance of strength and formability
Typical Applications	Chemical equipment, medical devices, low-pressure systems	Heat exchangers, condensers, marine systems, industrial piping



How to choose:
Choose GR1 titanium tube when maximum ductility and forming capability are required.
Choose GR2 titanium tube for most industrial applications because it provides a better balance of strength, corrosion resistance, and cost.



Feature	GR2 Titanium Tube	GR5 Titanium Tube
Alloy Type	Commercially Pure Titanium	Titanium Alloy (Ti-6Al-4V)
UNS Number	R50400	R56400
Alloy Elements	Pure Titanium	Aluminum + Vanadium Alloy
Strength	Medium	Very High
Corrosion Resistance	Excellent	Excellent
Weight	Lightweight	Lightweight
Weldability	Excellent	Moderate
Cost	Lower	Higher
Common Applications	Heat exchangers, condensers, chemical equipment	Aerospace, aircraft structures, high-strength components



How to choose:
Select GR2 titanium tube for corrosion-resistant industrial equipment.
Select GR5 titanium tube when maximum mechanical strength and lightweight structural performance are required.













What is GR2 Titanium Tube?

GR2 Titanium Tube is a commercially pure titanium tube manufactured from ASTM Grade 2 titanium (UNS R50400). It offers an excellent combination of corrosion resistance, strength, weldability, and durability, making it one of the most widely used titanium grades for industrial applications.

GR2 titanium tubes are commonly used in heat exchangers, condensers, seawater cooling systems, chemical processing equipment, and marine applications.



Do you provide EN 10204 3.1 Material Test Certificate?

Yes. We provide EN 10204 3.1 Mill Test Certificates (MTC) for GR2 titanium tubes.

The documentation can include:

Material grade confirmation

Heat number traceability

Chemical composition report

Mechanical test results

Manufacturing standard

Inspection records

Third-party inspection by SGS, BV, TÜV, or other organizations is also available.



Can you supply custom GR2 Titanium Tube sizes?

Yes. We support customized production for:

Non-standard outside diameter

Special wall thickness

Custom lengths

U-bend tubes

Precision titanium tubes

Please provide your required dimensions, quantity, and application details for technical evaluation.



Do you have GR2 Titanium Tube in stock?

Yes. We maintain regular inventory of commonly requested GR2 titanium tube sizes.

Typical delivery time:

Stock sizes: 3–7 working days

Custom sizes: 7–30 working days

Large production orders: According to quantity and specifications

Stock availability can be confirmed after receiving your tube dimensions.



How are GR2 Titanium Tubes packaged for export?

GR2 titanium tubes are packed according to international export requirements.

Typical packaging includes:

Plastic caps for tube ends

Waterproof wrapping

Protective materials

Export-grade wooden cases

Customized packaging solutions

Proper packaging prevents damage during international transportation.
