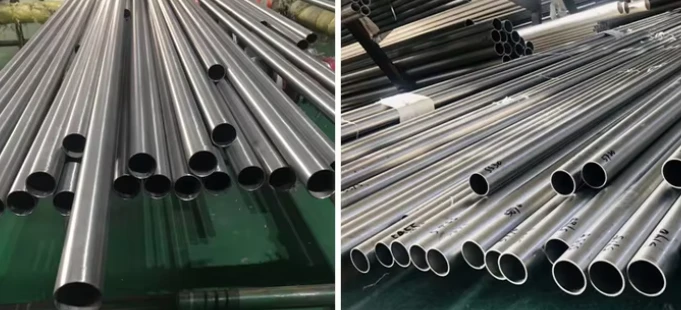

Thin Wall Gr2 Titanium Tubing

Thin Wall Gr2 Titanium Tubing is a precision tube manufactured from Grade 2 commercially pure titanium (UNS R50400) with a relatively small wall thickness compared to its outside diameter. It combines excellent corrosion resistance, high strength-to-weight ratio, and outstanding weldability, making it an ideal material for applications where lightweight construction, dimensional accuracy, and long service life are critical.

Thin-wall titanium tubing is typically produced through cold drawing and precision sizing, ensuring tight tolerances, smooth surface finishes, and consistent mechanical properties. Compared with conventional steel or stainless steel tubing, Gr2 Titanium Tubing weighs approximately 40% less while offering superior resistance to seawater, chlorides, acids, and many aggressive chemical environments.

Gr2 seamless titanium tubing shows good corrosion resistance in many media, especially in oxidizing, neutral and weakly reducing media. This is because titanium has a strong affinity for oxygen and can form a dense oxide film on the surface to protect the substrate from corrosion. This oxide film maintains its properties even at high temperatures.



World-class Gr2 thin-walled titanium tube production technology



Physical Properties

Density	Melting Range	Modulus of Elasticity (Tension)	Specific Heat	Mean Coefficient of Expansion	Thermal conductivity	Electrical Resistivity
kg/m3	°C	GPa	J/kg. °C	x10 -6 / °C	W / m. °C	micro-ohm.m
4,507	1668± 10	103	519	8.41	11.4	0.420



Erosion Corrosion Rates of Unalloyed Titanium, Grade 2

Location	Flow Rate	Type of Test	Test Duration	Erosion Corrosion Rate
	m/sec		months	mm/year
Brixham Sea	9.8	Model Condenser	12	0.003
Kure Beach, NC	1	Ducting	54	7.5 x 10-7
Kure Beach, NC	8.5	Rotating Disc	2	1.3 x 10-4
Kure Beach, NC	9	Micarta Wheel	2	2.8 x 10-4
Kure Beach, NC	7.2	Jet Impingement	1	5.0 x 10-4
Wrightsville Beach, NC	1.3	–	6	1.0 x 10-4
Wrightsville Beach, NC	9	Micarta Wheel	2	1.8 x 10-4
Mediterranean Sea	7.2	Jet Impingement	0.5	0.5mg/day
Dead Sea	7.2	Jet Impingement	0.5	0.5mg/day

Gr2 titanium straight tube is widely used in various fields. For example, it is commonly used to make pressurized parts of aircraft engines and structural parts of rockets and missiles. In addition, it is used in heat exchangers for desalination equipment, electrodes for the electrolysis industry, condensers for power stations, and petroleum refining and environmental pollution control devices.



Packaging of Gr2 Titanium Straight Tubes



Highly reliable team supplying Gr2 pure titanium tubing

GNEE is located in Anyang City, Henan Province, adjacent to the Yellow Sea, with convenient export transport conditions. Our main products include titanium tubes, titanium rods, titanium foils, titanium wires, titanium plates, etc., which are widely used in automotive, home appliances, construction, medical, aerospace and other industries. Our products are exported to more than 150 countries and regions such as Northeast China, North China, East China, Europe, Middle East, Southeast Asia, Australia and so on. We sincerely welcome friends from all over the world to visit our company and cooperate on the basis of long-term mutual benefit.


FAQ

1. What is Thin Wall Gr2 Titanium Tubing?

Thin Wall Gr2 Titanium Tubing is a precision tube manufactured from Grade 2 commercially pure titanium (UNS R50400) with a thin wall thickness and high dimensional accuracy. It is widely used in heat exchangers, medical equipment, aerospace, marine engineering, chemical processing, and instrumentation due to its excellent corrosion resistance and lightweight properties.



2. What wall thickness is considered "thin wall"?

Although there is no universal definition, thin-wall titanium tubing typically has a wall thickness between 0.3 mm and 2.0 mm, depending on the outside diameter and application. We can manufacture custom thin-wall tubes to meet specific project requirements.



3. What standards do your Thin Wall Gr2 Titanium Tubes comply with?

Our products can be manufactured in accordance with:

ASTM B338

ASTM B337

ASTM B861

ASME SB338

ASME SB861

Custom production is also available according to customer drawings and technical specifications.



4. What sizes are available?

Our standard production range includes:

Outside Diameter (OD): 3 mm – 60 mm

Wall Thickness (WT): 0.3 mm – 2.0 mm

Length: Up to 6,000 mm

Custom sizes and cut-to-length services are available upon request.



5. Why choose Grade 2 Titanium instead of stainless steel?

Compared with stainless steel, Grade 2 Titanium offers:

Approximately 40% lower weight

Superior resistance to seawater and chloride corrosion

Excellent resistance to pitting and crevice corrosion

Longer service life in aggressive environments

Lower maintenance costs over the product lifecycle



6. Do you supply seamless or welded thin-wall titanium tubing?

We primarily supply seamless thin-wall titanium tubing, which offers superior pressure resistance, dimensional consistency, and mechanical performance. Welded tubing is also available for applications where cost efficiency and larger diameters are required.



7. What surface finishes are available?

Available surface finishes include:

Pickled

Bright Annealed (BA)

Polished

Precision Ground (Optional)

Custom surface treatments are available according to customer specifications.



8. What quality inspections are performed?

Each batch of tubing undergoes strict quality control, including:

Positive Material Identification (PMI)

Chemical Composition Analysis

Mechanical Property Testing

Ultrasonic Testing (UT)

Eddy Current Testing (ECT)

Dimensional Inspection

Surface Quality Inspection

Third-party inspections by SGS, BV, TUV, or customer-designated agencies are available.



9. Can you provide EN 10204 3.1 Mill Test Certificates?

Yes. Every shipment can be supplied with an EN 10204 3.1 Mill Test Certificate (MTC). Additional documentation, including inspection reports and third-party certificates, can also be provided upon request.



10. What industries commonly use Thin Wall Gr2 Titanium Tubing?

Thin Wall Gr2 Titanium Tubing is widely used in:

Heat Exchangers & Condensers

Chemical Processing

Marine Engineering

Aerospace Systems

Medical Devices

Semiconductor Equipment

Instrumentation Tubing

Laboratory Equipment
