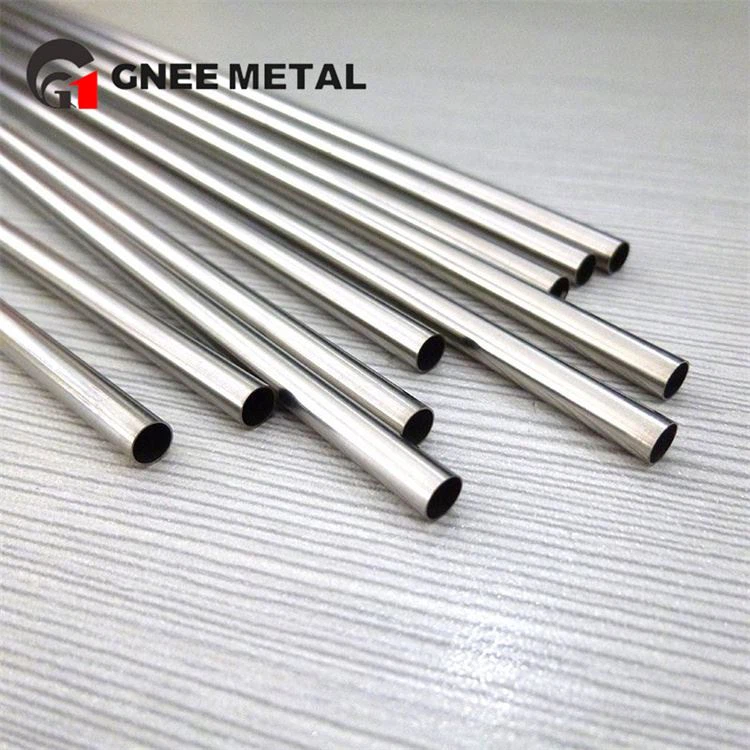

Titanium Seamless Tubing Grade 2
GR2 is a common titanium alloy material in industry. It is usually formulated and produced according to the standards of ASTM (American Society for Testing and Materials).
Description
As a common industrial pure titanium, Grade 2 titanium has excellent corrosion resistance. In seawater, salt water, wet chlorine gas, and some dilute acid and dilute alkali solutions, Grade 2 titanium shows strong corrosion resistance, which is far superior to ordinary stainless steel and carbon steel.
- Specification :ASTM B861, B338, B388, B862 / ASME SB861, SB338, SB388, SB862
- Pipe Range : ½"NB to 24"NB / SCH 10 – SCH XXS
- Tubes Range: 1mm OD to 254mm OD / Thickness 0.1 to 20mm.
- Type : Seamless / ERW / Welded / Fabricated Pipes

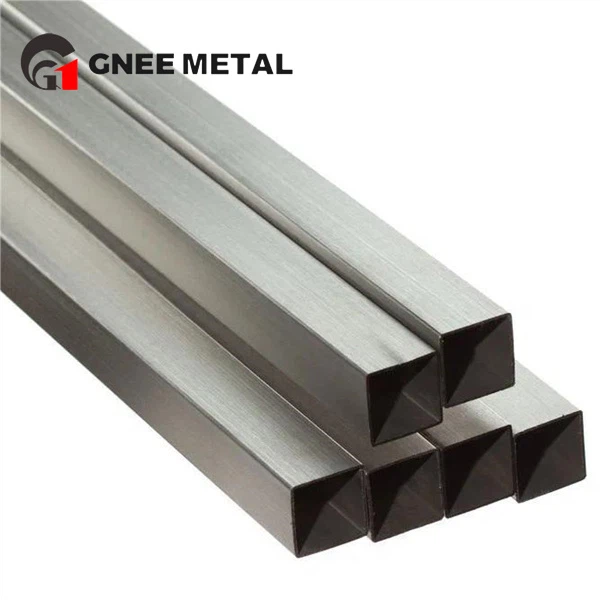

- Form : Round, Square, Rectangular, Oval, Hydraulic Etc
- Length : Single Random, Double Random & Required Length
- End : Plain End, Beveled End, Treaded
Chemical Component
| Grade |
Fe (max) |
C (max) |
N (max) |
O (max) |
H (max) |
Residuals Elements Each(max) |
Residuals Elements Total(max) |
| Gr2 | 0.3 | 0.08 | 0.03 | 0.25 | 0.015 | 0.1 | 0.4 |
Mechanical Property
| Grade | Tensile strength,Mpa (min) |
Yield strength,MPa (min) |
Elongation, % (min) |
| Gr2 | 345 | 275 | 20 |
Physical Properties
| Property | Measurement |
|---|---|
| Density (lb/in3) | 0.163 |
| Elongation (min %) | 20 |
| Minimum Yield (psi) – Gr. 1 | 40,000 |
| Minimum Tensile (psi) – Gr. 2 | 50,000 |
| Max Hardness (HRB) | 100 |
First-class titanium production technology
Applications
Bellows
aircraft structural honeycomb
gaskets
aircraft skin
heat exchanger parts
implantable battery cases/shields for CRM and Neurostimulation devices
implantable battery cathodes/connectors
stamped or etched fabrications
About Us
We focus on the customized production of high-end precision titanium materials, with a core Class 10,000 cleanroom environment dedicated to serving the medical, aerospace, and semiconductor industries. Our production lines are configured with Swiss precision slitting machines, Japanese high-precision cold rolling mills, and German 5-axis machining centers, capable of producing ultra-thin titanium strips with thickness tolerances of ±0.01mm, seamless titanium tubes with mirror-finish inner walls, and medical-grade titanium wire meeting implant standards. All processes are completed in a controlled temperature and humidity environment, supported by coordinate measuring machines, metallographic analysis systems, and ICP mass spectrometers, ensuring dual control over microstructural and macroscopic properties.
