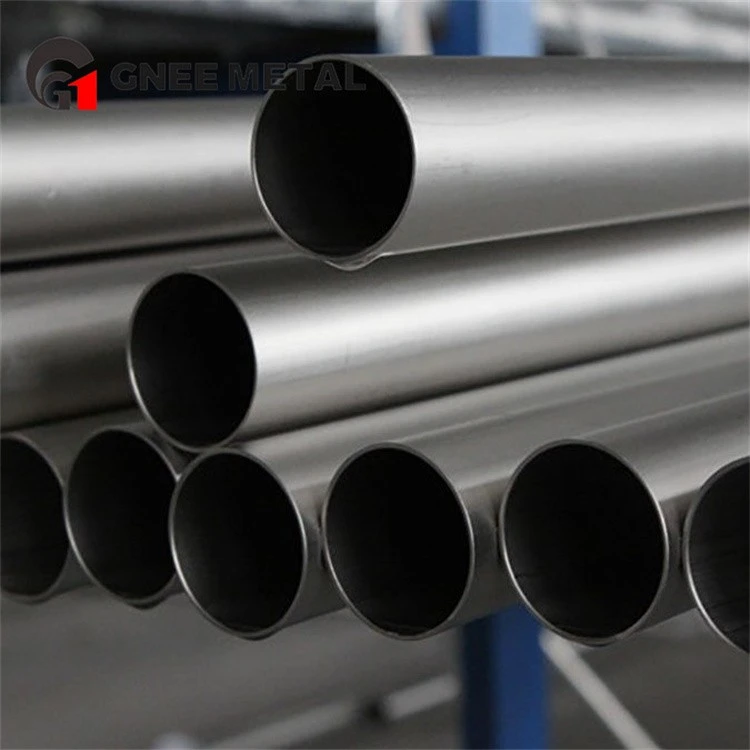

Titanium Straight Pipe For Rocket Engines
Titanium straight tubes used in rocket motors need to be extremely strong, heat and corrosion resistant in order to cope with extreme operating environments.Ti-6Al-4V (GR5) is a commonly used titanium alloy material for such demanding applications.
Description
Ti-6Al-4V (Grade 5) Titanium Alloy
Chemical Composition:
Titanium (Ti): balance
Aluminum (Al): 5.5 to 6.8 percent
Vanadium (V): 3.5 to 4.5 percent
Oxygen (O): 0.20% maximum
Nitrogen (N): 0.03% maximum
Hydrogen (H): 0.015% maximum
Iron (Fe): 0.30% max.
Carbon (C): 0.08% max.
Silicon (Si): max. 0.15 %
Mechanical properties (for annealed condition)
Tensile Strength: Minimum values typically range from 870 MPa to 960 MPa.
Yield Strength (0.2% Offset): Typically between 820 MPa and 900 MPa minimum.
Elongation: Minimum of at least 10%.
First-class production process of titanium straight tube
|
Name |
Titanium Tube & Pipe |
|||
|
Standard |
ASTM B338/ASME SB338, ASTM B337/ASME SB337, ASTM B861/ASME SB861, ASTM B862/ASME SB862,AMS4911,AMS4928 |
|||
|
Material Grade |
Gr1, Gr2, Gr4, Gr7, Gr9, Gr11, Gr12, etc |
|||
|
Size |
Length: 50-6000mm or according to customer requirements |
|||
|
Outer diameter: 3-300mm or according to customer requirements |
||||
|
Wall thickness: 0.2-5.5mm or according to customer requirements |
||||
|
Section shape |
Round / Square |
|||
|
Tolerance |
a) Outer Diameter: +/- 0.01mm b) Thickness: +/- 0.01mm |
|||
|
Surface |
Pickling, annealing, polishing, bright. |
|||
Applications for Ti-6Al-4V seamless titanium tubes
Combustion chambers: Titanium straight tubes are used to make rocket engine combustion chambers, which are subjected to high temperatures and pressures.
Nozzles: Used in the manufacture of nozzles to ensure efficient propulsion. -Cooling systems: Tubes used in cooling systems to help dissipate heat and protect critical components.
Packaging of alloy titanium tubes
Professionally recognized supply of titanium metal tubes
Factory Advantages
Precision Machining:Our production facility includes precision machining tools and equipment to ensure the accuracy of product dimensions and tolerances. This precision machining capability allows us to produce customized products that meet specific customer requirements.
Quality Control System:We have a strong quality control system in place to ensure that our products meet industry standards and specifications. Our quality control team utilizes state-of-the-art equipment and inspection tools to check the quality of each product.
Continuous Improvement:Our factories are committed to continually improving production processes and equipment. We invest in research and development to keep up with the latest technological advances and to ensure that our production equipment is up-to-date.
