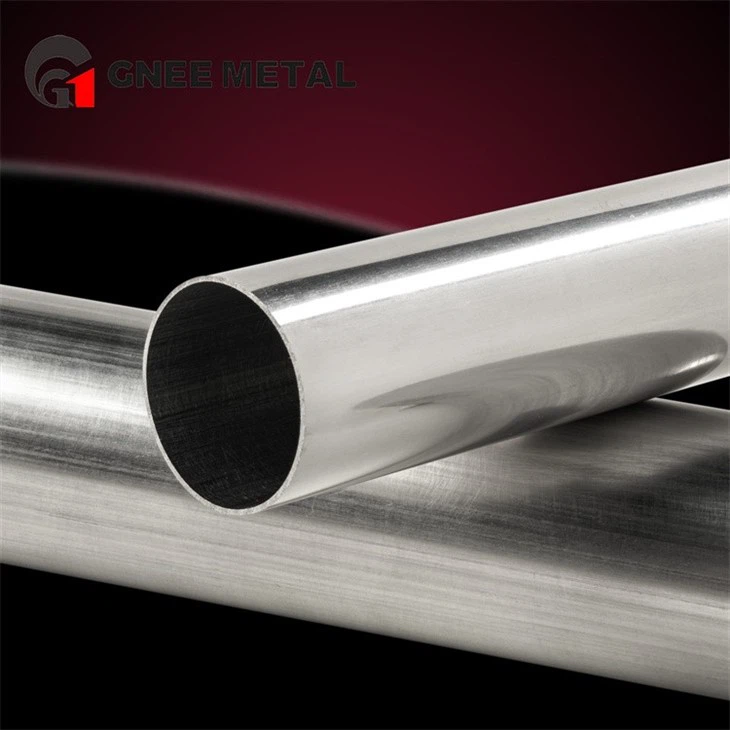

Titanium Straight Tube Grade 23
Grade 23 titanium straight tube (Ti-6Al-4V ELI): extra-low interstitials O <=0.13, tensile >=895 MPa (annealed) - for implants (F136), cryogenic and high-performance tubing. Corrected page.
Description
What Grade 23 Is
Grade 23 titanium - Ti-6Al-4V ELI - is the extra-low-interstitial version of the most widely used alpha-beta titanium alloy, Grade 5 (Ti-6Al-4V). It has the same basic composition, but the interstitial elements (oxygen, carbon, nitrogen, hydrogen) are held to much lower maximums, which improves fracture toughness, ductility at low temperatures and biocompatibility.
Chemical Composition (wt %)
| Ti | Al | V | Fe | O | C | N | H |
|---|---|---|---|---|---|---|---|
| Balance | 5.5-6.5 | 3.5-4.5 | <=0.25 | <=0.13 | <=0.08 | <=0.03 | <=0.0125 |
The 'ELI' designation refers to these tight interstitial limits - oxygen is the element that most affects toughness and ductility.
Mechanical Properties (Annealed, Typical)
Tensile >=895 MPa; yield >=825 MPa; elongation >=10%.
Density 4.43 g/cm3; better fracture toughness and ductility than Grade 5, especially at cryogenic temperatures.
Standards
ASTM B861 (seamless pipe), B338 (heat exchanger tube), B862 (welded pipe); ASME SB861/SB338.
ASTM F136 - wrought Ti-6Al-4V ELI for surgical implant applications.
Industry-leading copper production technology
Specifications
OD 0.5-200 mm; wall 0.1-10 mm; lengths 6 m, 12 m or customized; straight lengths or short sections; arcs on request.
Surface: polishing, sandblasting, pickling; heat treatment (solution and aging) per application.
Applications
Surgical implants and medical instruments (per ASTM F136).
Cryogenic piping and vessels.
Aerospace and high-performance structural tubing.
Marine and chemical equipment.
Selection Note
Choose Grade 5 when standard alpha-beta strength at lower cost is enough. Choose Grade 23 when implant-grade purity, low-temperature toughness, or extra-low interstitials are specified. Confirm the form (seamless vs welded) in your order.
