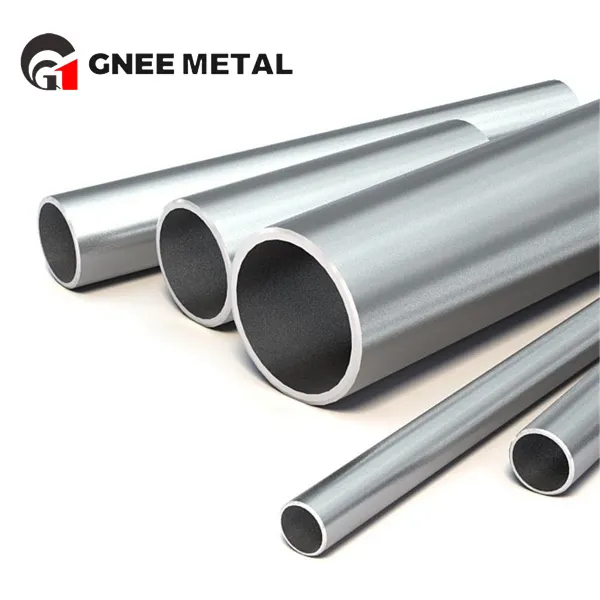

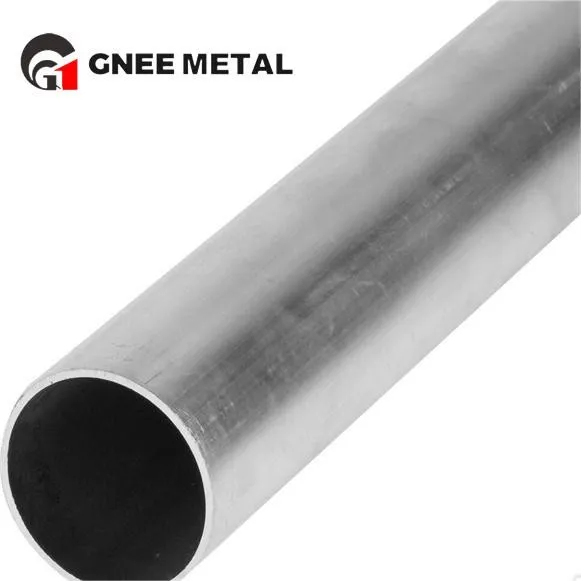

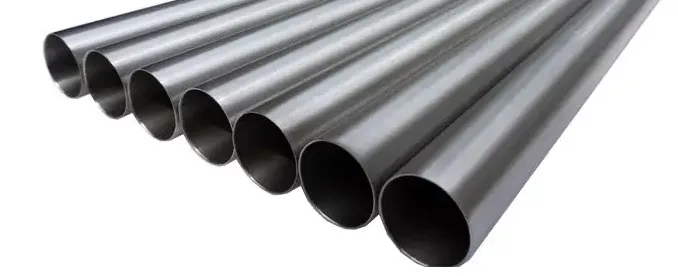

Titanium Tube Grade 12
Titanium Gr.12 has excellent resistance to acid corrosion and very good resistance to crevice corrosion in hot brines. Due to its higher strength, Gr.12 Titanium can have a thinner wall thickness than Gr.2 Titanium or Gr.7 Titanium under the same conditions.
Description
Titanium Grade 12 alloy is similar to Titanium Grades 2 and 3 except that Titanium Grade 12 has 0.3% molybdenum and 0.8% nickel. This offers enhanced corrosion resistance.
Moderate Strength Titanium
Excellent Cold Formability
Excellent Weldability
Excellent Resistance to High Oxidation
Products Description
First-class titanium production technology
| CHEMICAL COMPOSITION | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| C 0.08% Max | N 0.03% Max | O 0.25% Max | H 0.15% Max | Ni 0.60- 0.90% | |||||
| Fe 30% Max | Ti Remainder | ||||||||
| PHYSICAL PROPERTIES | ||||||
|---|---|---|---|---|---|---|
| Density | Electrical conductivity (% IACS) | Thermal conductivity (BTU-in/hr-ft²-°F) | Specific heat (BTU/lb-°F) | Thermal expansion (1/°F) | Melting Point (°F) | |
| 0.163 | – | 11 | 0.13 | 0.00000530 | – | |
| MECHANICAL PROPERTIES | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| PROPERTY | MINIMUM | MAXIMUM | |||||||
| Yield Strength Range (Rp0.2 Offset) (ksi) | – | 55.1 | |||||||
| Tensile Strength Range (Rm) (ksi) | – | 79.8 | |||||||
| Elongation (AL=5 x Ø) | – | 12.0% | |||||||
| Brinell Hardness (H) | 180 | 235 | |||||||
| Modulus of Elasticity (ksi) (E): 15200 | |||||||||
| Machineability General Index: – | |||||||||
Titanium Grade 12 0.8NI-0.3MO is a commercially pure forged titanium alloy.Grade 12 titanium alloys offer excellent strength at elevated temperatures, good weldability and resistance to crevice corrosion. This material is similar to Grade 2 and Grade 3 titanium alloys, but with the addition of molybdenum and nickel for enhanced corrosion resistance.Grade 12 titanium alloys can be hot or cold formed by either compression molding, hydroforming, stretch molding, or drop hammering. The material's ability to be molded in a variety of ways makes Grade 12 titanium useful in many applications.
