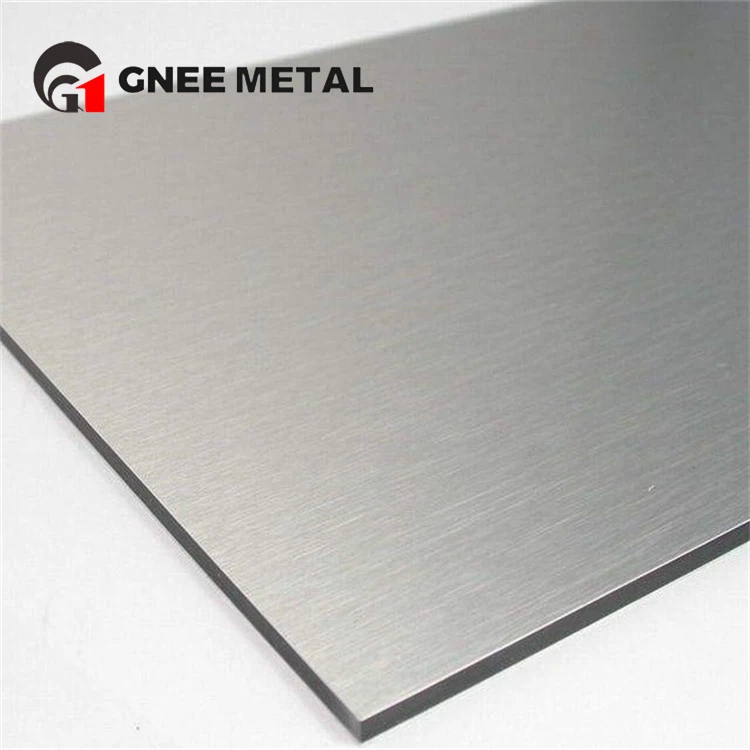

High Quality Titanium Alloy Plate Grade 1

Grade 1 titanium alloy is a high purity titanium alloy, also known as CP (Commercially Pure) titanium alloy. Its chemical composition contains more than 99.5% titanium and has excellent properties such as good corrosion resistance, high strength, and low density.

Send Inquiry Chat Now

Description

What is GR1 titanium?

Grade 1 titanium is pure titanium, with a titanium content of not less than 99.5% and very low impurity content. It has low strength but excellent ductility and toughness. Grade 1 titanium performs well in a variety of environments, especially in seawater and chloride ion environments; Grade 1 titanium is non-toxic and compatible with human tissue, and is often used in the medical field.

Specification: ASTM B265 / ASME SB265

Dimension Standard : JIS, AISI, ASTM, GB, DIN, EN, etc

Dimension:

T 0.5-5.0mm x W1000mm x L 2000-3500mm
T 6.0- 30mm x W1000-2500mm x L 3000-6000mm
T 30- 80mm x W1000mm x L 2000mm

Get Detailed Technical Data

GR1 Titanium Data Sheet

Chemical Composition Requirements

Element	Weight %
Ti	Balance
Fe	≤0.20
O	≤0.18
N	≤0.030
C	≤0.080
H	≤0.015

Mechanical Properties (Annealed Condition - Typical)

Property	Value	Unit	Test Standard
Tensile Strength, min.	240	MPa (35 ksi)	ASTM E8
Yield Strength (0.2% Offset), min.	170	MPa (25 ksi)	ASTM E8
Elongation in 2" / 50mm, min.	24	%	ASTM E8
Reduction of Area	30	%	ASTM E8
Hardness (Rockwell B)	70 - 85	HRB	ASTM E18
Modulus of Elasticity	105	GPa (15.2 x 10⁶ psi)	-
Density	4.51	g/cm³ (0.163 lb/in³)	-

Physical Properties

Physical Properties	Metric	English
Density	4.51g/cm³	0.163 lb/in³
Melting Point	1670 °C	3038 °F

We can provide GR1 titanium

Gr1 Titanium Pipe

Gr1 Titanium Sheet

Gr1 Pure Titanium Bar

Pure Gr1 Titanium Wire

Titanium Foil Roll Gr1

Application fields

Chemical industry: used to manufacture corrosion-resistant reactors, heat exchangers, etc.

Marine engineering: suitable for desalination equipment and ship parts.

Medical: used for artificial joints, dental implants, etc.

Aerospace: used for non-structural parts and cryogenic parts.

Processing and welding

Processability: easy to cut, bend and form.

Weldability: TIG, MIG and plasma welding can be used, and heat treatment is required after welding to eliminate stress.

Surface treatment

Polishing: improve surface finish and corrosion resistance.

Anodizing: increase surface hardness and wear resistance, provide a variety of color options.

Environmental protection and recycling

Environmental protection: can be fully recycled and meet environmental protection requirements.

Recycling: scrap titanium can be re-smelted to reduce resource waste.

Get Free Sample & Evaluation

Our factory

We are a highly flexible, rapid-delivery titanium processing center. Our factory layout is centered on agile manufacturing, featuring multiple parallel small-batch rapid production lines that support completing blanking, cutting, drilling, and surface treatment within 72 hours. We maintain inventories of standard specifications for sheets, rods, and tubes in various grades such as GR1, GR2, and GR5, coupled with a 24/7 logistics system to swiftly respond to urgent customer demands or R&D prototyping. We are committed to being our clients' efficient "external titanium warehouse" and processing workshop.

GR1 titanium

Titanium product packaging

Optimized for samples and small-batch orders with multiple specifications. Each product is individually packed in zipper-sealed anti-static bags, accompanied by product labels and quality inspection cards. Multiple product bags are then consolidated into portable plastic storage bins with handles or high-strength handled cartons, with clear internal compartments for easy customer use and archiving upon receipt. Ideal for expedited air freight, trade show samples, and laboratory procurement.

Titanium Grade 1
