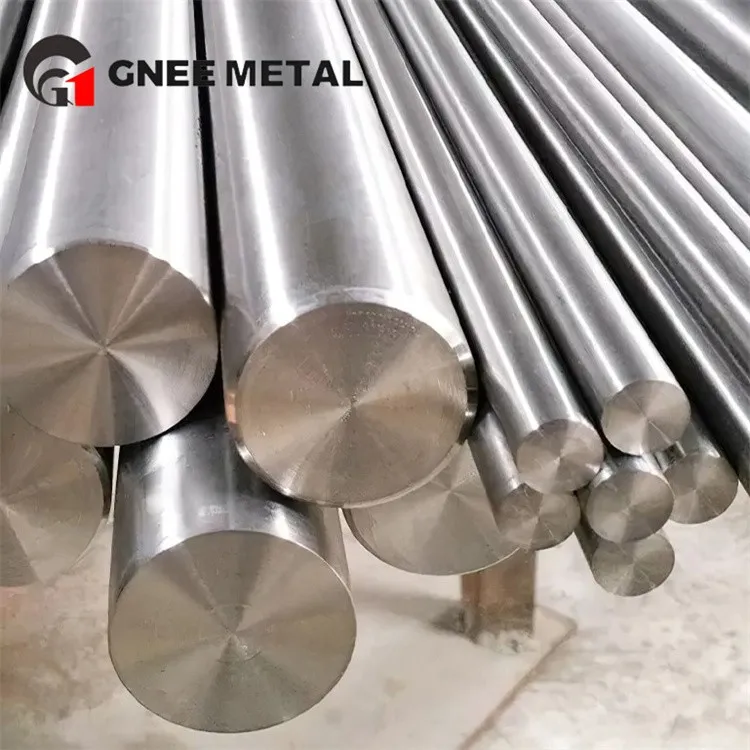

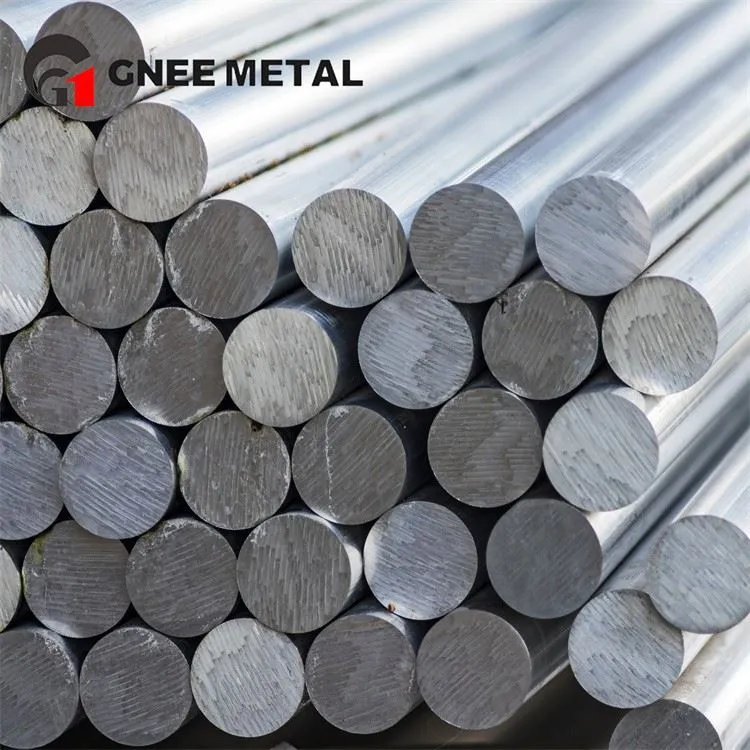

AMS 4930 GR23 ELI Titanium Rod
GR23 titanium rods have very low levels of interstitial elements such as oxygen, nitrogen and carbon, which results in superior mechanical properties.
Description
AMS 4930 is a standard developed by the American Society for Testing and Materials (ASTM) to define the technical requirements for Ti-6Al-4V ELI (Extra Low Interstitials) titanium alloy rods.GR23 is a specific grade within the standard, and is typically used in applications requiring high purity and strength, particularly in the medical and aerospace applications.
First-class AMS 4930 GR23 titanium bar production process
Chemical Composition
The chemical composition of grade 23 Ti 6Al 4V ELI alloy is outlined in the following table.
| Element | Content (%) |
|---|---|
| Titanium, Ti | 88.09 - 91 |
| Aluminum, Al | 5.5 - 6.5 |
| Vanadium, V | 3.5 - 4.5 |
| Iron, Fe | ≤ 0.25 |
| Carbon, C | ≤ 0.080 |
| Nitrogen, N | ≤ 0.030 |
| Hydrogen, H | ≤ 0.0125 |
| Other, each | ≤ 0.10 |
| Other, total | ≤ 0.40 |
Applications for AMS 4930 GR23 Titanium Bar
Artificial joints: Due to its excellent biocompatibility and corrosion resistance, GR23 titanium rods are widely used in the manufacture of artificial hip and knee joints.
Aero-engine blades: GR23 titanium rods maintain their high strength and toughness at elevated temperatures and are therefore commonly used to manufacture blades and other critical components for aero-engine applications.
High-end sports equipment: such as frames and cranks for high-performance bicycles, utilizing its light weight and high strength.
AMS 4930 GR23 alloy titanium bar delivery process
Highly reliable factory supply AMS 4930 GR23 small diameter titanium rods
We can provide high quality products, good service and competitive price. We have been committed to producing high quality titanium products such as titanium tubes, titanium wires, titanium sheets, titanium strips, titanium rods and so on.
Our products are exported to more than 150 countries and have entered key industries such as shipbuilding, automotive, large power stations, medical, aerospace and so on.
Since the establishment of our company, we have been sticking to our goals and striving for them. Sustainable economic development is the theme of our overall strategy.
The company's business philosophy is customer first, honesty, and win-win cooperation. We would like to do our best to provide high quality service to our customers and sincerely hope to cooperate with friends from all over the world.
