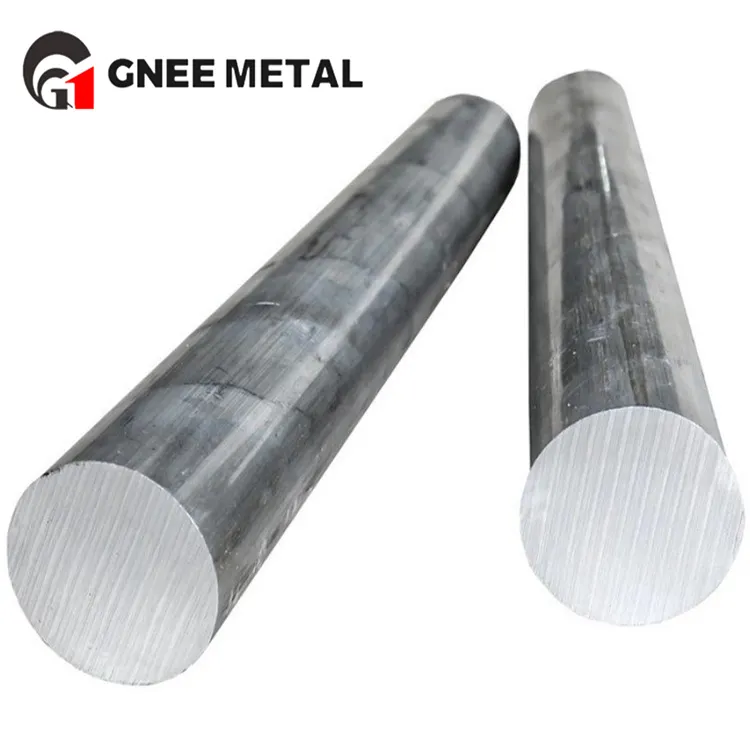

AMS 6932 GR5 Titanium Bar
AMS 6932 GR5 titanium bar is a specific specification of titanium alloy products which are widely used in various industrial fields.
Description
Made from Ti-6Al-4V, GR5 titanium rods offer high strength and lightweight properties, making them ideal for aerospace, automotive, and medical devices. GR5 titanium rods show strong corrosion resistance in a wide range of media, especially neutral and oxidizing media, and are suitable for chemical equipment and more.
First-class AMS 6932 GR5 alloy titanium bar production process
Titanium Grade 5 Mechanical Properties
| Property | Minimum | Typical Value |
| Tensile Strength MPa (ksi) | 897 (130) | 1000 (145) |
| 0.2% Proof Stress MPa (ksi) | 828 (120) | 910 (132) |
| Elongation Over 2 Inches % | 10 | 18 |
| Reduction in Area % | 20 | |
| Elastic Modulus GPa (Msi) | 114 (17) | |
| Hardness Rockwell C | 36 | |
| Specified Bend Radius <0.070 in x Thickness | 4.5 | |
| Specified Bend Radius >0.070 in x Thickness | 5 | |
| Welded Bend Radius x Thickness | 6 | |
| Charpy, V-Notch Impact J (ft.lbf) | 24 (18) |
AMS 6932 GR5 titanium rods are often used in the manufacture of precision instruments due to their excellent properties. In addition, in the medical and aerospace fields, this type of titanium bar is often used due to its good corrosion resistance and high strength.AMS 6932 GR5 titanium bar is available in different specifications, such as rolled and forged, with diameters ranging from 7.0mm to 300mm, and can be selected from annealed or hot worked condition as required.
Packing of AMS 6932 GR5 titanium round bar
Experienced AMS 6932 GR5 titanium straight bar export factory
GNEE is located in Anyang City, Henan Province, adjacent to the Yellow Sea, with convenient export transport conditions. Our main products include titanium tubes, titanium rods, titanium foils, titanium wires, titanium plates, etc., which are widely used in automotive, home appliances, construction, medical, aerospace and other industries. Our products are exported to more than 150 countries and regions such as Northeast China, North China, East China, Europe, Middle East, Southeast Asia, Australia and so on. We sincerely welcome friends from all over the world to visit our company and cooperate on the basis of long-term mutual benefit.
