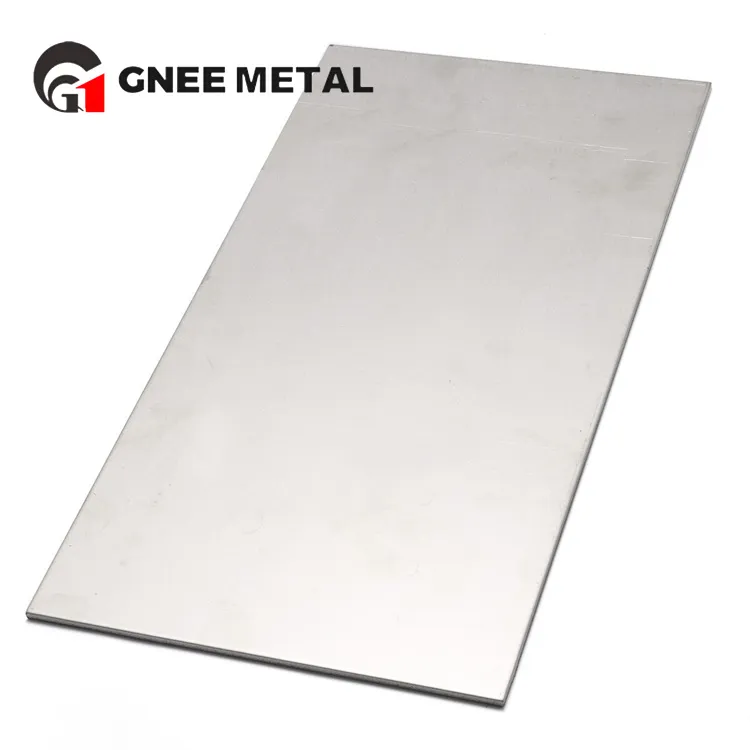

MIL-T-9046 H Type 3 Comp C Sheet
MIL-T-9046 is a U.S. military standard that specifies a specific type of titanium alloy sheet.H Type 3 Comp C refers to the specific state or condition of treatment of this material.
Description
Material Grade: Typically Ti-6Al-4V (Grade 5) titanium alloy.
Heat Treatable Condition: H Type 3 usually indicates that the material has been solution treated and aged to achieve specific mechanical properties.
Comp C: Refers to a specific chemical composition control requirement or special treatment condition.
First-class production process of Ti-6Al-4V titanium plate
|
Application |
Industry,Medical |
|
Width |
400-3000mm |
|
Length |
1000-6000mm |
|
Technique |
Hot Rolled |
|
Grade |
GR1 GR2 GR4 GR5 GR7 GR8 GR9 GR12 |
|
Ti (Min) |
99.6% |
|
Processing Service |
Bending, Welding, Decoiling, Cutting, Punching |
|
Product Name |
Titanium Plate |
|
Material |
Titanium GR1/GR2/GR3/GR5/GR7/GR9/GR12/GR13/GR14 |
|
Shape |
Titanium Sheet |
|
Delivery time |
Within 7 working days after receiving the advance |
|
Payment terms |
T/T,L/C |
Typical properties of Ti-6Al-4V (Grade 5) titanium alloy:
-Chemical Composition:
Titanium (Ti): Balance
Aluminum (Al): 5.5% to 6.8%
Vanadium (V): 3.5 to 4.5 percent
Oxygen (O): 0.20% maximum
Nitrogen (N): 0.03% maximum
Hydrogen (H): 0.015% maximum
Iron (Fe): 0.30% max.
Carbon (C): 0.08% max.
Silicon (Si): max. 0.15 %
Mechanical Properties (for H-Type 3 processed condition):
Tensile Strength: Minimum values typically range from 1200 MPa to 1300 MPa.
Yield Strength (0.2% Offset): Typically between 1100 MPa and 1200 MPa minimum.
Elongation: 10% minimum.
Packing of Ti-6Al-4V thin titanium sheet
Highly reliable factory supply Ti-6Al-4V rectangular titanium sheet
We can provide high quality products, good service and competitive price. We have been committed to producing high quality titanium products such as titanium tubes, titanium wires, titanium sheets, titanium strips, titanium rods and so on.
Our products are exported to more than 150 countries and have entered key industries such as shipbuilding, automotive, large power stations, medical, aerospace and so on.
Since the establishment of our company, we have been sticking to our goals and striving for them. Sustainable economic development is the theme of our overall strategy.
The company's business philosophy is customer first, honesty, and win-win cooperation. We would like to do our best to provide high quality service to our customers and sincerely hope to cooperate with friends from all over the world.
