Gr12 Titanium Coiled Wire
GR12 titanium wire is an α+β type titanium alloy containing iron, chromium, nickel, molybdenum and manganese. In its composition, the content of iron is 0.3~0.8wt%, which can improve the strength and fracture toughness of the alloy, and also has good corrosion resistance.
Description
GR12 titanium alloy wire is characterized by low density (4.51g/cm³), high strength, good plasticity, good corrosion resistance and heat resistance, so it is widely used in aerospace, chemical, medical equipment and marine engineering. With a melting point of 1660°C and a low coefficient of thermal expansion, it can be used for applications in high-temperature environments.

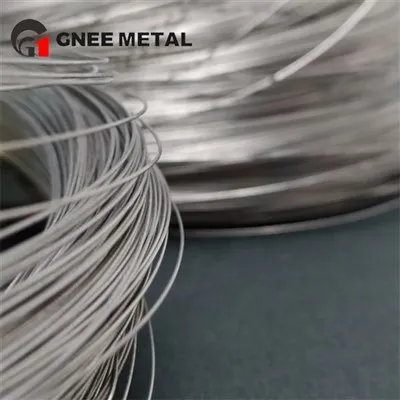

Top quality Gr12 titanium wire coils
Allowable Stress for Titanium Grade 12 Materials
| *Temp. | -20~100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 550 | 600 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| *MAS-1 | 20.0 | 20.0 | 18.7 | 17.4 | 16.2 | 15.2 | 14.3 | 13.6 | 13.1 | 12.7 | 12.3 |
| *MAS-2 | 17.0 | 17.0 | 15.9 | 14.8 | 13.8 | 12.9 | 12.1 | 11.5 | 11.1 | 10.8 | 10.5 |
| *MAS-3 | 29.2 | 29.2 | 26.2 | 23.8 | 21.3 | 18.8 | 16.4 | 14.1 | 12.3 | 10.9 | 10.0 |
| *MAS-4 | 24.8 | 24.8 | 22.3 | 20.2 | 18.1 | 16.0 | 13.9 | 12.0 | 10.5 | 9.3 | 8.5 |
Chemical Composition Requirements
| C | O | N | H | Fe | Ni | Mo | Ti | *OEE | *OET |
|---|---|---|---|---|---|---|---|---|---|
| ≤ 0.08 | ≤ 0.25 | ≤ 0.03 | ≤ 0.015 | ≤ 0.30 | 0.6~0.9 | 0.2~0.4 | Remaining | ≤ 0.1 | ≤ 0.4 |
Mechanical Properties (Tensile Requirements)
| Tensile Strength, min. ksi [MPa] | Yield Strength, min. ksi [MPa] | Elongation in 2", min. % |
|---|---|---|
| 70 [483] | 50 [345] | 18% |
GR12 titanium metal wire has good corrosion resistance and can withstand different chemical media including acids, alkalis, chloride ions and seawater. Care needs to be taken with the surface finish of the material when in use, as an unfinished surface can predispose the material to pitting in harsh environments.
Large scale factory production of Gr12 industrial titanium wire
Why choose our Gr12 titanium round wire
GNEE is a manufacturer specialising in the research, development, production, sales and service of titanium products such as titanium tubes, titanium rods, titanium sheets, titanium wires and titanium strips. Our company is located in Henan Province with convenient traffic. Our factory has been engaged in foreign markets for more than 16 years and has rich production experience. Our main markets are Dubai, Indonesia, Singapore, Vietnam, Malaysia, Philippines, Chile, Mexico, Israel, Spain and so on.
