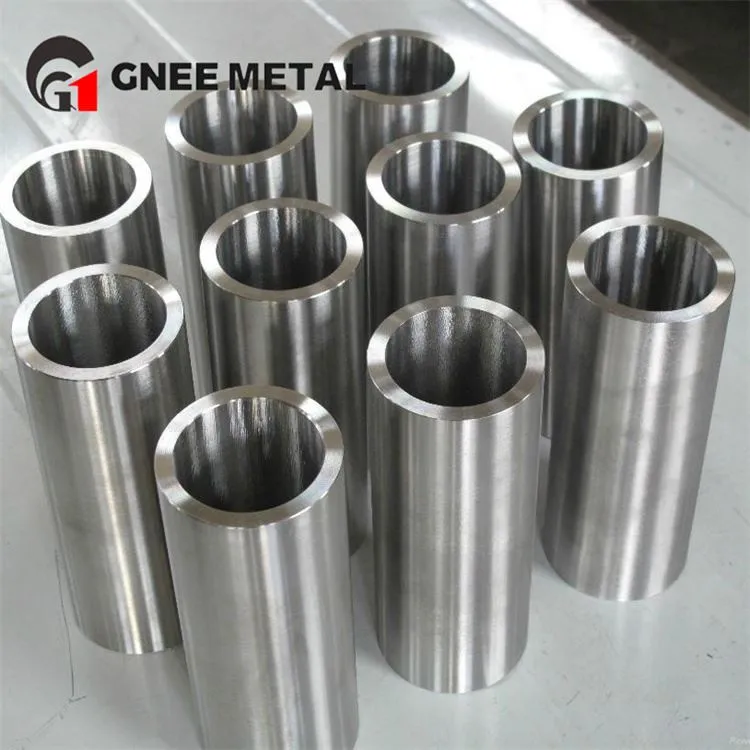

Astm B338 Gr2 Titanium Seamless Tube

The minimum titanium content of Astm B338 Gr2 Titanium Seamless Tube ranges from approximately 98.925% to 99.5% by weight.ASTM B338 Gr. 2 titanium tubing is primarily used in the manufacture of surface condensers, evaporators, and heat exchangers. These applications typically require excellent corrosion resistance as well as high fabrication ductility with relatively low in-service strength. These titanium tubes can be further processed into spirals, U-tubes, serpentine tubes, concentric coils, and other specialized shapes.



Industry-leading titanium production technology



Element	Weight %
C	≤0.08
O	≤0.25
N	≤0.03
H	≤0.015
Fe	≤0.30
*OEE	≤0.10
*OET	≤0.40
Ti	Remaining



STANDARD	WERKSTOFF NR.	UNS
Titanium Gr 2	3.7035	R50400



Property	Value
Tensile Strength	≥345 MPa (50 ksi)
Yield Strength (0.2% Offset)	≥275 MPa (40 ksi)
Elongation	≥20%
Reduction of Area	≥30%
Hardness	≤160 HB
Elastic Modulus	103 GPa
Fatigue Resistance	Excellent
Impact Toughness	Good at Ambient Temperature



ASTM B338 Grade 2 Titanium Tubing Titanium tubing and pipe are increasingly used in a variety of applications where stainless steel and other materials are inefficient in many cases. A common titanium mill product is titanium tubing, which is used in a variety of products due to its excellent corrosion resistance and strength-to-weight ratio. The development of many different alloys has expanded the use of titanium in industries ranging from industrial and chemical processing to power generation. The American Society of Mechanical Engineers has approved most titanium alloy grades, which means more choices are available for a variety of projects. While grades 1, 2, 3, 7, 9, 11, etc. can be used, grade 2 is suitable for most situations.



Our production facility is equipped with a complete set of advanced titanium processing equipment, ensuring stable quality, precise dimensions, and reliable performance of every ASTM B338 Grade 2 Titanium Tube used in heat exchangers and industrial systems.

Equipment	Function	Engineering Purpose
Vacuum Arc Remelting (VAR) Furnace	Produces high-purity titanium ingots	Ensures stable chemical composition for UNS R50400 Grade 2 titanium
Hot Extrusion Press	Forms titanium billets into tube blanks	Provides uniform grain structure and base tube geometry
Cold Rolling Mill	Reduces wall thickness and improves precision	Enhances dimensional accuracy and mechanical strength
Cold Drawing Machine	Refines OD/WT and surface quality	Achieves tight tolerances for heat exchanger tubes
Bright Annealing Furnace	Controlled heat treatment process	Produces fully annealed condition for Grade 2 titanium tubes
Straightening Machine	Corrects tube bending and deformation	Ensures installation-ready straightness for tube bundles
Precision Cutting Machine	Fixed and custom length cutting	Supports engineering drawing requirements
Chamfering & End Finishing Machine	Tube end processing	Ensures proper fit-up in tube sheets and welding preparation



Our titanium tube warehouse

Professionally recognized team

Group has 5 subsidiary corporations, located in Anyang, Tianjin, Hongkong and Singapore countries and districts. Headquarters is in hometown of oracle in Henan province, location of world cultural heritage" Yin Ruin", Anyang city, one of eight ancient capitals of China. The company, strictly implement the 6S management system, in 2016 passed the ISO9001 international quality system certification, GJB9001B-2009 National military standard quality management system certification.
