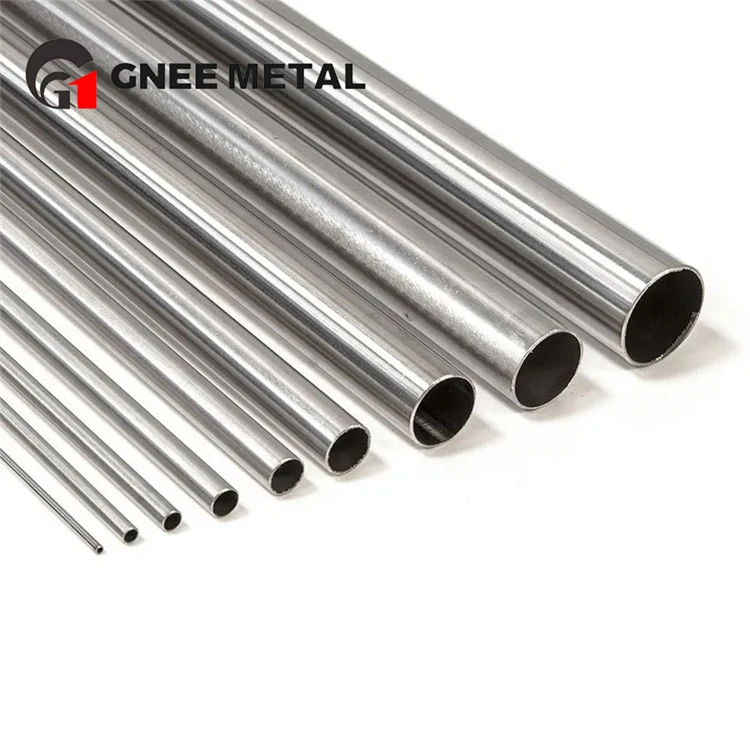

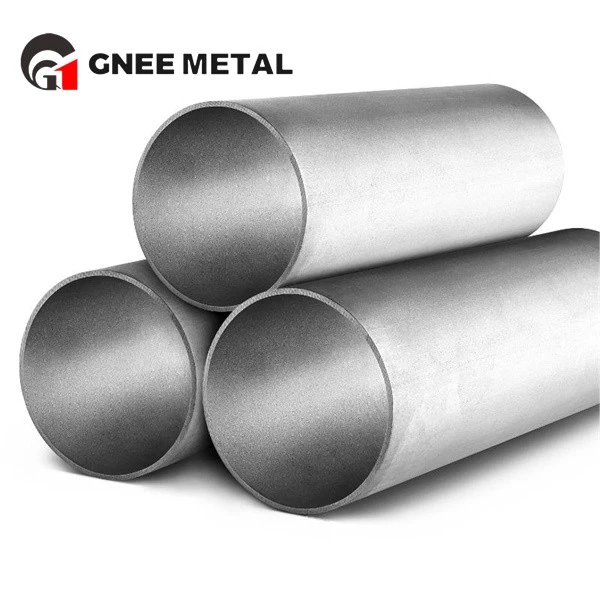

Gr7 Titanium Pipe
The presence of the elements AL and V in Grade 7 titanium tubing makes Grade 7 titanium alloy a high quality material for biomedical applications in plants.
Description
Grade 7 titanium tubing is commonly used in the manufacture of chemical reactors, tanks, piping and vessels due to its resistance to many corrosive media including acids, salts and chemical solutions.Grade 7 industrial titanium tubing is used in the manufacture of heat exchangers for the heating or cooling of fluids in a wide range of chemical process and energy applications.
Top Quality Gr7 Titanium Tubes
Mechanical Properties
The following table shows mechanical properties of grade 17 Ti-0.05Pd alloy.
| Properties | Metric | Imperial |
|---|---|---|
| Tensile strength | 485 MPa | 70343 psi |
| Yield strength | 350 MPa | 50763 psi |
| Elastic modulus | 103 GPa | 14938 ksi |
| Elongation in 50 mm (A5) | 28% | 28% |
| Hardness (HV) | 150 | 150 |
Heat treatments for Grade 7 thin-walled titanium tubing include stress relief annealing and solution treatments. Stress relief annealing removes internal stresses generated during the welding process and prevents cracking during hydroforming. Annealing also reduces the strength and increases the plasticity of the material. In order to reduce the contamination of the surface of the Grade 7 material by various gases during the heat treatment process, the surface of the billet can be coated with an anti-oxidising coating.
Gr7 Alloy Titanium Tubing Production Facilities
Highly Reliable Team Supply Gr7 Thin Wall Titanium Tube
GNEE was established in 2008 with 16 years of manufacturing and sales experience. With many years of production experience and independent production factories, we can provide you with customized products. Meanwhile, we cooperate with many famous factories, which can provide you with large quantities of high quality metal. We have up to 200 employees and will continue to grow in the future. All of them are committed to providing you with better products and services. We are committed to providing you with the best products and services, and we will provide you with more favorable pricing and safe and fast transportation solutions. GENN is trustworthy. We look forward to working with you.
