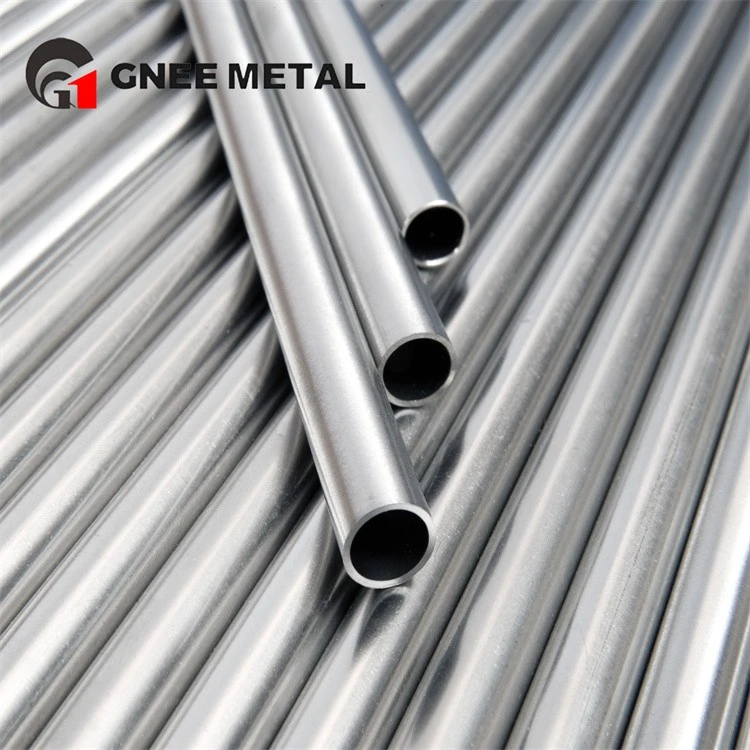

TA2 Titanium Alloy
TA2 titanium tubing shows excellent corrosion resistance in various corrosive environments, which is especially suitable for the chemical industry. For example, in the chlor-alkali industry, TA2 titanium tubing effectively resists corrosion by chlorine gas and hydrogen chloride.
Description
What Is TA2 Titanium Alloy?
TA2 is the Chinese national standard designation for industrial pure titanium, corresponding directly to ASTM Grade 2 (UNS R50400) . It is an α-type titanium alloy with a titanium purity of ≥ 99.2% .
Unlike alloyed titanium grades such as TC4 (Ti-6Al-4V) or TA7 (Ti-5Al-2.5Sn), TA2 is non-heat-treatable and achieves its mechanical properties through solid solution strengthening controlled by oxygen and iron content. It is globally recognized as the most balanced and widely used industrial pure titanium grade, offering the optimal combination of strength, corrosion resistance, formability, and cost efficiency.
Standard Equivalents
| Region / Standard | Grade Designation |
|---|---|
| China (GB/T) | TA2 |
| USA (ASTM / ASME) | Grade 2 / UNS R50400 |
| International (ISO) | ISO 5832-2 (Grade 2) |
| Japan (JIS) | Class 2 |
| Europe (DIN) | DIN 3.7035 |
Chemical Composition
| Element | Composition (wt%) |
|---|---|
| Titanium (Ti) | ≥ 99.2 |
| Iron (Fe) | ≤ 0.30 |
| Oxygen (O) | ≤ 0.25 |
| Carbon (C) | ≤ 0.08 |
| Nitrogen (N) | ≤ 0.03 |
| Hydrogen (H) | ≤ 0.015 |
| Residual Elements (each) | ≤ 0.10 |
| Residual Elements (total) | ≤ 0.40 |
Physical Properties
| Property | Value |
|---|---|
| Density | 4.51 g/cm³ |
| Melting Point | 1660–1700°C |
| Thermal Conductivity | 21.9 W/m·K |
| Coefficient of Thermal Expansion | 8.6 × 10⁻⁶/°C (20–100°C) |
| Electrical Resistivity | 0.55 µΩ·m |
| Elastic Modulus | 105–110 GPa |
| Magnetic Properties | Non-magnetic |
| Specific Heat Capacity | 523 J/kg·K |
Mechanical Properties by Product Form
| Condition | Tensile Strength (min) | Yield Strength (min) | Elongation (min) |
|---|---|---|---|
| Annealed | 440 MPa | 320 MPa | 20% |
Performance of TA2 titanium pipe
1. Lightweight and corrosion resistant: TA2 pure titanium tubing is made of titanium metal with a purity of 99.5% or more, which is very light, with a specific gravity of only 4.5 g/cm³. At the same time, titanium metal has strong corrosion resistance, can be used in a variety of acids, alkalis, salts and other corrosive media for a long time without corrosion.
2. High strength and excellent mechanical properties: TA2 pure titanium tube has excellent mechanical properties, such as high strength and good plastic deformation ability. Its yield strength can reach 345 MPa, tensile strength of 480 MPa, yield elongation of about 18%. Therefore, TA2 pure titanium tubes are suitable for environments that require high strength and complex dynamic mechanical loads.
Applications by Industry
Marine Engineering:
Seawater cooling systems
Desalination plants (heat exchanger tubing)
Shipboard piping
Offshore platform risers
Ballast water treatment systems
Chemical Processing:
Heat exchangers
Reactor vessels
Evaporators
Pumps and valves
Storage tanks
Aerospace:
Non-structural tubing
Hydraulic system lines (low pressure)
Airframe brackets
Fasteners
Power Generation:
Condenser tubes
Steam turbine blades
Geothermal well casings
Medical:
Surgical instruments
Implantable devices (ISO 5832-2)
Dental frames
Architecture & Construction:
Building facades
Roofing systems
Marine monuments
Automotive:
Exhaust systems
Spring components
Lightweight structural parts
TA2 vs. Other Titanium Grades
| Grade | Type | Strength | Corrosion Resistance | Formability | Weldability | Cost |
|---|---|---|---|---|---|---|
| TA1 (Grade 1) | CP | Low | Excellent | Excellent | Excellent | Low |
| TA2 (Grade 2) | CP | Medium | Excellent | Excellent | Excellent | Low |
| TA3 (Grade 3) | CP | Medium-High | Excellent | Good | Excellent | Low-Medium |
| TA4 (Grade 4) | CP | High | Good | Fair | Good | Medium |
| TA9 (Grade 7) | CP + Pd | Medium | Superior | Excellent | Excellent | High |
| TA10 (Grade 12) | CP + Ni/Mo | Medium-High | Excellent | Good | Excellent | Medium |
| TC4 (Grade 5) | α-β | Very High | Good | Fair | Good | High |
Check Today's Stock & Lead Time
FAQ
What standards apply to TA2 titanium tube?
A:
Chinese standards: GB/T 3624, GB/T 3625, GB/T 2965
ASTM/ASME: ASTM B338 / ASME SB-338, ASTM B861, ASTM B862
Aerospace: AMS 4928
Is TA2 titanium tube weldable?
A: Yes, but special precautions are required. TA2 is weldable primarily via TIG (GTAW) welding. Due to titanium's high chemical reactivity at elevated temperatures, strict protection from atmospheric contamination is mandatory.
What is the optimal cold rolling reduction for TA2?
A: For two-roll cold rolling, 64% reduction per pass produces smooth surface finish with no micro-cracks. Increasing to 76% reduction causes visible longitudinal lines and micro-cracks.
What causes tube expansion cracking in TA2?
A: Case studies show that incomplete removal of longitudinal rolling lines at tube ends-even defects well within standard tolerance-can propagate during tube expansion, causing through-wall cracks.
Is TA2 tube suitable for seawater service?
A: Excellent. TA2 is a preferred material for seawater cooling systems, desalination plants, and marine piping. It is immune to chloride stress corrosion cracking below 120°C and exhibits outstanding pitting and crevice corrosion resistance.
Where should TA2 NOT be used?
A:
Strong reducing acids (HCl, H₂SO₄) without inhibitors
Hydrofluoric acid or fluoride-containing media
Hot >70°C concentrated chlorides (crevice corrosion risk)
Continuous service temperatures exceeding 300°C
