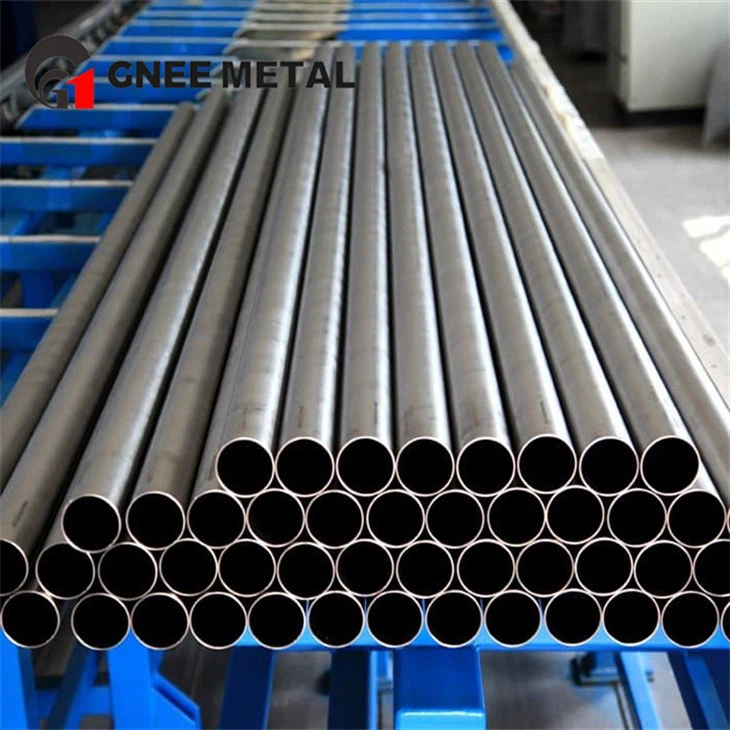

Titanium Seamless Piping Grade 3
Grade 3 titanium pipe - higher-strength commercially pure grade (tensile ≥440 MPa, O ≤0.35%): composition, ASTM B861/ASME SB861, for petrochemical, power and marine service.
Description
What Grade 3 Is
Grade 3 is a commercially pure (CP) titanium grade positioned between Grades 1-2 (softer, more formable) and Grade 4 (strongest CP). Its higher strength comes from a higher oxygen content (maximum 0.35%) - interstitial oxygen strengthens the metal without alloy additions, so Grade 3 keeps the corrosion resistance of unalloyed titanium while carrying more load.
Chemical Composition (ASTM B861, wt % max)
| Element | Grade 3 |
|---|---|
| Ti | Balance |
| O | 0.35 |
| Fe | 0.30 |
| C | 0.08 |
| N | 0.05 |
| H | 0.015 |
Mechanical and Physical Properties
Tensile ≥440 MPa, yield ≥380 MPa, elongation ≥18% (annealed, typical - check the current edition for thickness-dependent values).
Density 4.51 g/cm3; melting point ~1668°C; elastic modulus ~105-120 GPa.
Corrosion Resistance and Fabrication
Excellent resistance to acids, alkalis and salt solutions - the self-healing TiO2 film provides durable protection in marine and chemical environments.
Formability: hot rolling, cold rolling, drawing and bending into various diameters and shapes.
Weldability: good, with standard titanium practice - full inert-gas shielding on both sides, clean surfaces, low heat input.
First-class titanium production technology
Specifications
Standards: ASTM B861 (seamless pipe), B338 (heat exchanger tube), B862 (welded pipe); ASME SB861/SB338/SB862. (Note: B388 is not a valid ASTM designation.)
Pipe range: 1/2" to 24" NB, SCH 10 to SCH XXS; tube range 1-254 mm OD, wall 0.1-20 mm.
Forms: round, square, rectangular, oval, hydraulic; ends: plain, beveled, threaded; lengths: single random, double random or required.
Surface: polished, sandblasted, pickled per requirement.
Applications
Petrochemical: distillation towers, heat exchangers and piping resisting corrosive media.
Power generation: condenser cooling tubes - corrosion and scaling resistance in circulating cooling water.
Aerospace: structural components and fasteners where strength-to-weight matters (not turbine hot sections).
Marine and offshore: seawater systems and structures.
Automotive: high-performance components such as exhaust systems and connecting rods.
Selection Note
Choose Grade 3 when you need more strength than Grades 1-2 with better formability than Grade 4. For higher strength still, use Grade 5 (Ti-6Al-4V) or Grade 23; for aggressive reducing-acid or crevice service, use the palladium grades (Gr.7/16/17). Confirm the current standard edition for exact values before specification.
