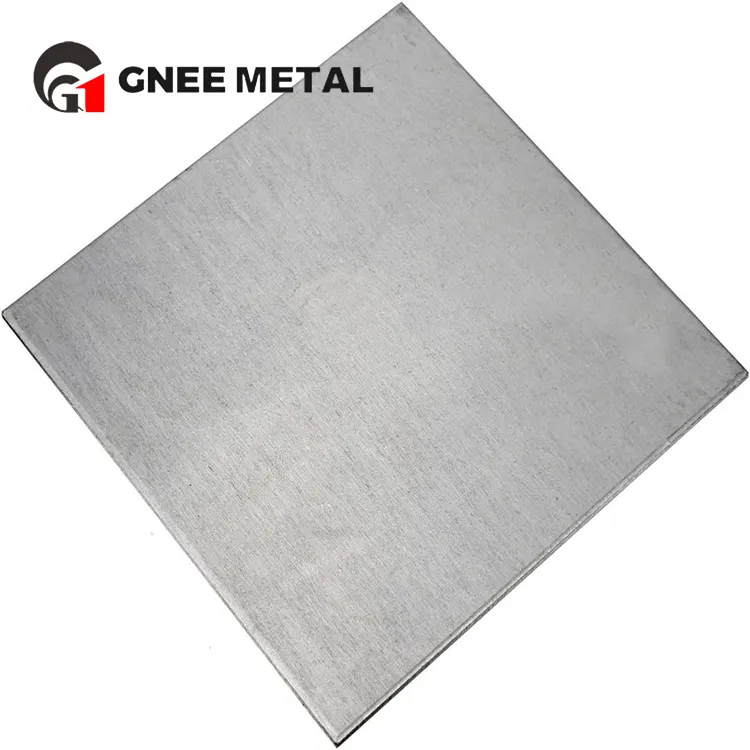

GR5 1mm Titanium Sheet in Infrastructure
GR5 Titanium Alloy Sheet is an alpha + beta duplex titanium alloy containing aluminum and vanadium for high strength. It provides adequate structural support even at a thickness of 1 mm.
Description
Titanium has a density of about 4.5 g/cm³, which is much lower than steel (about 7.85 g/cm³). This makes GR5 titanium sheet lighter in weight while maintaining high strength, helping to lighten the overall structural load.GR5 titanium sheet is highly resistant to most acids, alkalis and salts, making it particularly suitable for use in environments such as chemical plants and wastewater treatment facilities.
Top quality GR5 titanium steel sheet
|
Property |
Minimum |
Typical Value |
|
Tensile Strength MPa (ksi) |
897 (130) |
1000 (145) |
|
0.2% Proof Stress MPa (ksi) |
828 (120) |
910 (132) |
|
Elongation Over 2 Inches % |
10 |
18 |
|
Reduction in Area % |
20 |
|
|
Elastic Modulus GPa (Msi) |
|
114 (17) |
|
Hardness Rockwell C |
|
36 |
|
Specified Bend Radius <0.070 in x Thickness |
|
4.5 |
|
Specified Bend Radius >0.070 in x Thickness |
|
5.0 |
|
Welded Bend Radius x Thickness |
6 |
|
|
Charpy, V-Notch Impact J (ft.lbf) |
|
24 (18) |
GR5 titanium plate in infrastructure applications:
Bridges and Building Structures: Due to its high strength and low density, GR5 titanium sheet can be used to make lightweight structural components in bridges and buildings. This helps to reduce overall weight and improve the durability and seismic performance of the structure.
Offshore engineering: In offshore oil drilling platforms and wind power platforms, GR5 titanium sheet can be used to manufacture structural components and equipment to cope with the harsh marine environment. The excellent performance of titanium sheet is especially prominent in applications that require long-term resistance to seawater corrosion.
Packaging and transportation of GR5 thin titanium sheet
Highly reliable team supplying GR5 titanium foil sheet
GNEE is a manufacturer specialising in the research, development, production, sales and service of titanium products such as titanium tubes, titanium rods, titanium sheets, titanium wires and titanium strips. Our company is located in Henan Province with convenient traffic. Our factory has been engaged in foreign markets for more than 16 years and has rich production experience. Our main markets are Dubai, Indonesia, Singapore, Vietnam, Malaysia, Philippines, Chile, Mexico, Israel, Spain and so on.
