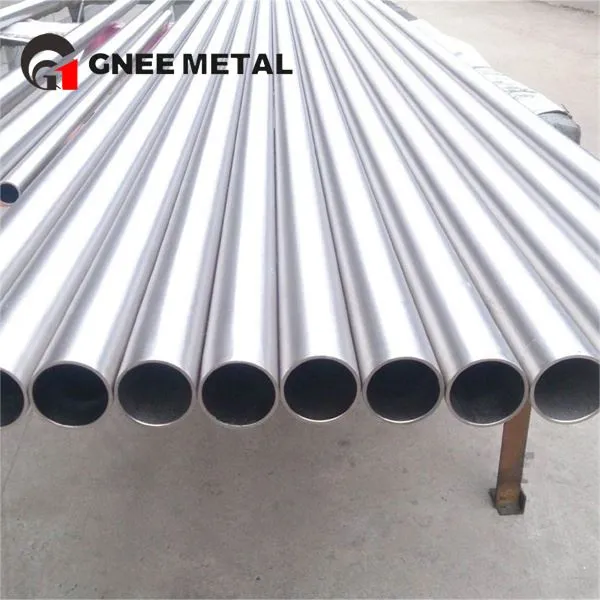

5 Inch Gr23 Titanium Pipe
Outside diameter: 5 inches (about 127 mm).
Wall Thickness: The specific wall thickness depends on the application requirements, commonly available in a variety of specifications, such as 0.125 inches, 0.188 inches and so on.
Length: can be customized according to the needs, usually standard length or customer-specified length.
Description
Application areas of Gr23 5 inch titanium tubing
Chemical industry: used in the manufacture of reactors, heat exchangers, piping systems and other equipment requiring corrosion resistance.
Oil and gas: for offshore platforms, drilling equipment and piping systems, especially in environments containing hydrogen sulfide and other corrosive media.
Aerospace: for aircraft structural components, engine parts and hydraulic systems due to their lightweight and high strength properties.
Offshore: for desalination equipment, shipbuilding and marine exploration equipment.
First-class Gr23 medical titanium tubing production process
Mechanical Properties
The following table shows mechanical properties of grade 23 Ti 6Al 4V ELI alloy.
| Properties | Metric | Imperial |
|---|---|---|
| Tensile strength | 860 MPa | 125000 psi |
| Yield strength | 790 MPa | 115000 psi |
| Poisson's ratio | 0.342 | 0.342 |
| Elastic modulus | 113.8 GPa | 16510 ksi |
| Shear modulus | 44.0 GPa | 6380 ksi |
| Elongation at break | 15% | 15% |
| Hardness, Brinell | 326 | 326 |
| Hardness, Knoop | 354 | 354 |
| Hardness, Rockwell C | 35 | 35 |
| Hardness, Vickers | 341 | 341 |
Thermal Properties
The thermal properties of grade 23 Ti 6Al 4V ELI alloy are tabulated below.
| Properties | Metric | Imperial |
|---|---|---|
| Thermal expansion co-efficient (@20-100°C/68-212°F) | 8.60 µm/m°C | 4.78 µin/in°F |
| Thermal conductivity | 6.70 W/mK | 46.5 BTU in/hr.ft².°F |
Advantages of Gr23 Titanium Alloy Tubing
Corrosion resistance: Gr23 titanium alloy has excellent corrosion resistance, especially in acidic and salt water environments.
High temperature performance: It can still maintain good mechanical properties at high temperatures.
High Strength: Compared with other titanium alloys, Gr23 has higher strength and hardness.
Weldability: It can be connected by various welding methods, such as TIG welding, MIG welding, etc.
Packaging of Gr23 Titanium Round Tubes
Highly Reliable Team Supply Gr23 Small Diameter Titanium Tubing
GNEE is located in Anyang City, Henan Province, adjacent to the Yellow Sea, with convenient export transport conditions. Our main products include titanium tubes, titanium rods, titanium foils, titanium wires, titanium plates, etc., which are widely used in automotive, home appliances, construction, medical, aerospace and other industries. Our products are exported to more than 150 countries and regions such as Northeast China, North China, East China, Europe, Middle East, Southeast Asia, Australia and so on. We sincerely welcome friends from all over the world to visit our company and cooperate on the basis of long-term mutual benefit.
