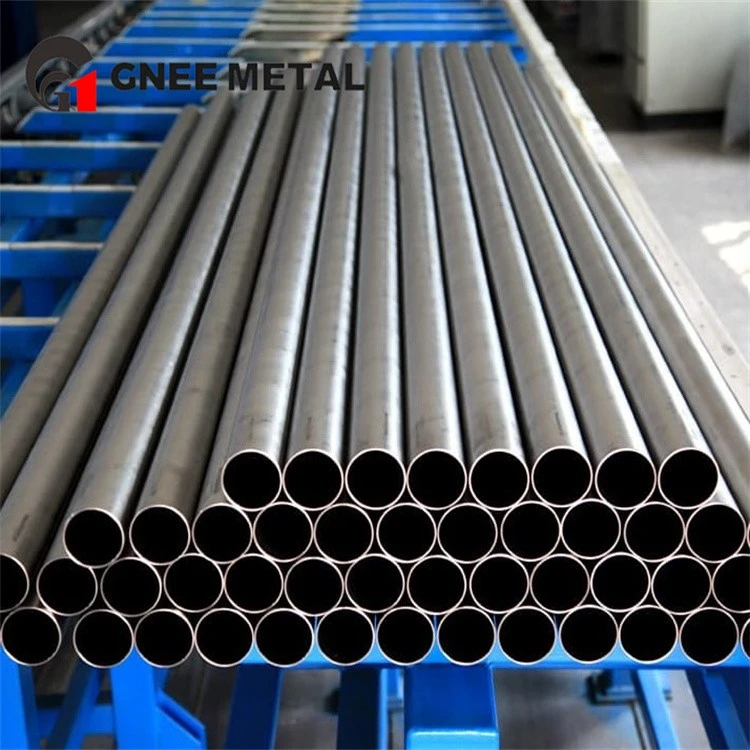

Small Diameter Ti-6al-4v Titanium Tubing
Ti-6Al-4V titanium alloy tubes are widely used in aerospace, medical and other fields for their high strength, low density and excellent corrosion resistance.
Description
Ti-6al-4v small diameter titanium tube has high strength, high toughness, good corrosion resistance and excellent welding performance. Its density is about 4.43g/cm³, which is only about half that of steel, so it has a significant lightweight advantage.
First-class production process of Ti-6al-4v titanium tubing
Typical physical properties for Ti6Al4V.
|
Property |
Typical Value |
|
Density g/cm3 (lb/ cu in) |
4.42 (0.159) |
|
Melting Range °C±15°C (°F) |
1649 (3000) |
|
Specific Heat J/kg.°C (BTU/lb/°F) |
560 (0.134) |
|
Volume Electrical Resistivity ohm.cm (ohm.in) |
170 (67) |
|
Thermal Conductivity W/m.K (BTU/ft.h.°F) |
7.2 (67) |
|
Mean Co-Efficient of Thermal Expansion 0-100°C /°C (0-212°F /°F) |
8.6x10-6 (4.8) |
|
Mean Co-Efficient of Thermal Expansion 0-300°C /°C (0-572°F /°F) |
9.2x10-6 (5.1) |
|
Beta Transus °C±15°C (°F) |
999 (1830) |
The hardness properties of Ti-6Al-4V titanium tubing make it an ideal material for aero-engine parts. It is hard enough to withstand wear and stress at extremely high temperatures and high speeds, while maintaining lightweight characteristics. For example, in jet engine turbine blades, the hardness of Ti-6Al-4V titanium straight tubing effectively prevents the material from suffering wear or fatigue damage due to long-term use. In medical implants, such as hip and knee prostheses, the alloy's combination of hardness and biocompatibility ensures that the prostheses remain stable and wear-resistant during long-term use.
Large scale factory production of Ti-6al-4v small diameter titanium tubing
Highly reliable team supply Ti-6al-4v seamless titanium tubing
GNEE is located in Anyang City, Henan Province, adjacent to the Yellow Sea, with convenient export transport conditions. Our main products include titanium tubes, titanium rods, titanium foils, titanium wires, titanium plates, etc., which are widely used in automotive, home appliances, construction, medical, aerospace and other industries. Our products are exported to more than 150 countries and regions such as Northeast China, North China, East China, Europe, Middle East, Southeast Asia, Australia and so on. We sincerely welcome friends from all over the world to visit our company and cooperate on the basis of long-term mutual benefit.
