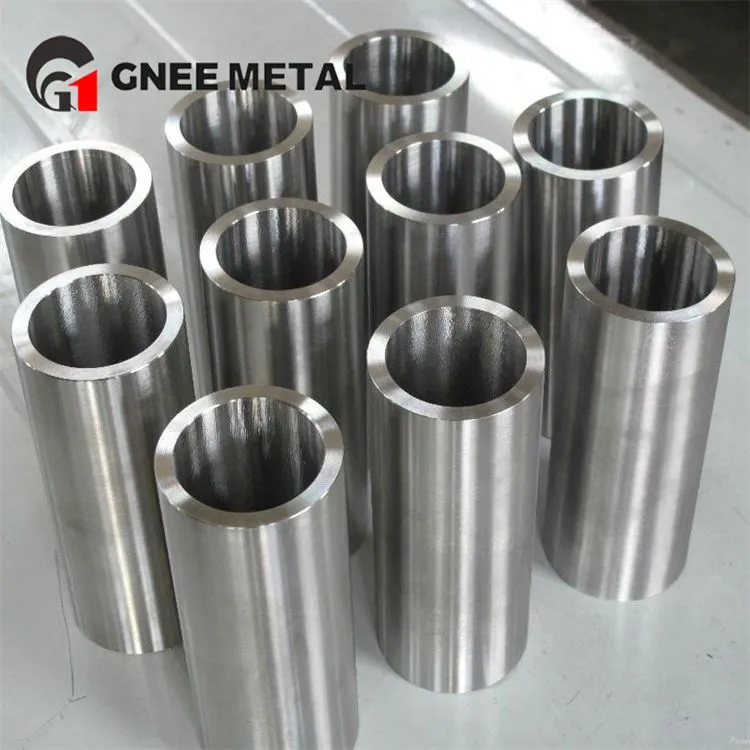

ASTM B338 Gr2 Titanium Round Tube
ASTM B338 Gr2 Titanium Round Tube is a pure titanium material with excellent electrical conductivity and corrosion resistance. It has good machinability and is easy to process into various shapes and sizes.
Description
Production process of ASTM B338 Gr2 titanium tube
Raw material preparation: Gr2 titanium in accordance with ASTM B338 standard is used.
Forming process: Cold rolling is used to form seamless round tubes through multiple rolling passes.
Specification control: Control the wall thickness, diameter and length of titanium tubes according to standards to ensure compliance with specifications.
Testing and inspection: Ultrasonic testing, eddy current testing, water pressure testing and air tightness testing are carried out to ensure the quality of titanium tubes.
First-class ASTM B338 Gr2 titanium tube production process
Room Temperature Mechanical Properties
| Ultimate Tensile Strength | Yield Strength | %EI | %RA | |||
| MPa | ksi | MPa | ksi | |||
| Specified Minimum Properties | 345 | 50 | 275 | 40 | 20 | 30 |
| Typical Properties | 510 – 605 | 74 – 88 | 335 – 545 | 49 – 79 | 21 – 29 | 47 – 54 |
ASTM B338 Gr2 titanium straight pipe storage precautions
Site selection: Store in a clean, dry, well-ventilated warehouse, away from harmful gases or dust.
Stacking requirements: titanium tubes should be categorized and stacked to prevent confusion and contact corrosion, small and medium-sized titanium tubes can be stored on thatch under the mat.
Antirust treatment: for corrosion-prone titanium tubes, after removing rust, they should be coated with antirust oil before storage.
Regular inspection: After storage, it should be inspected frequently, if there is corrosion, the corrosion layer should be removed.
Packaging of ASTM B338 Gr2 titanium round pipe
Highly Reliable Factory Supply ASTM B338 Gr2 Titanium Straight Pipe
GNEE is located in Anyang City, Henan Province, adjacent to the Yellow Sea, with convenient export transport conditions. Our main products include titanium tubes, titanium rods, titanium foils, titanium wires, titanium plates, etc., which are widely used in automotive, home appliances, construction, medical, aerospace and other industries. Our products are exported to more than 150 countries and regions such as Northeast China, North China, East China, Europe, Middle East, Southeast Asia, Australia and so on. We sincerely welcome friends from all over the world to visit our company and cooperate on the basis of long-term mutual benefit.
